APTEK-1

General Information

Connector Serries	Industrial I/O Connectors
Gender	Male

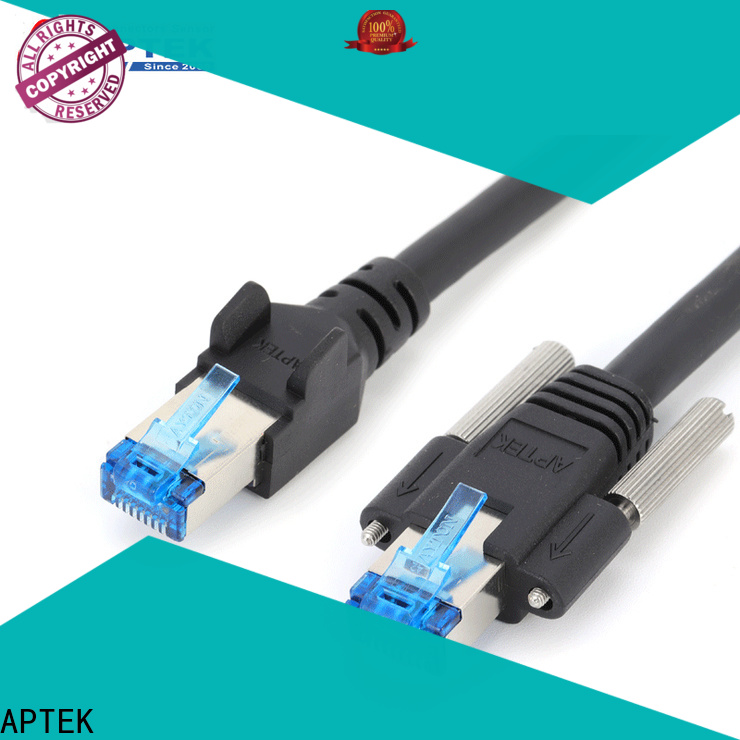

Connector	RJ45 8P8C male plug
Ambient temperature	-25℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 20 mΩ
EMI Shielding	Shielded
Characteristic impedance:	100Ω ±25
Coupling attenuation:	≥35 dB from (30 to 100) MHZ, ≥75 dB from (30 to 100) MHZ, mated connectors
Propagation delay:	≤ 2.5ns
Insertion loss:	≤ 0.1 dB, mated connectors
Return loss:	68 dB up to 1000 MHz, mated connectors
NEXT loss:	≥ 94 dB/ 102.4 dB, pair to pair, mated connectors
FEXT loss:	≥ 83 dB/ 90 dB, pair to pair, mated connectors

Electrical data & Mechanical data

Rated current

Voltage

Wire gauge/size

Cable jacket

Wire insulation

Cable Spec

Cable ending & length

AWG

mm²

1.5A

30V

26~24AWG

0.14~0.25

PUR / PVC

HDPE

CAT 5E;

CAT 6A;

CAT 7

Customized cable ending and length
