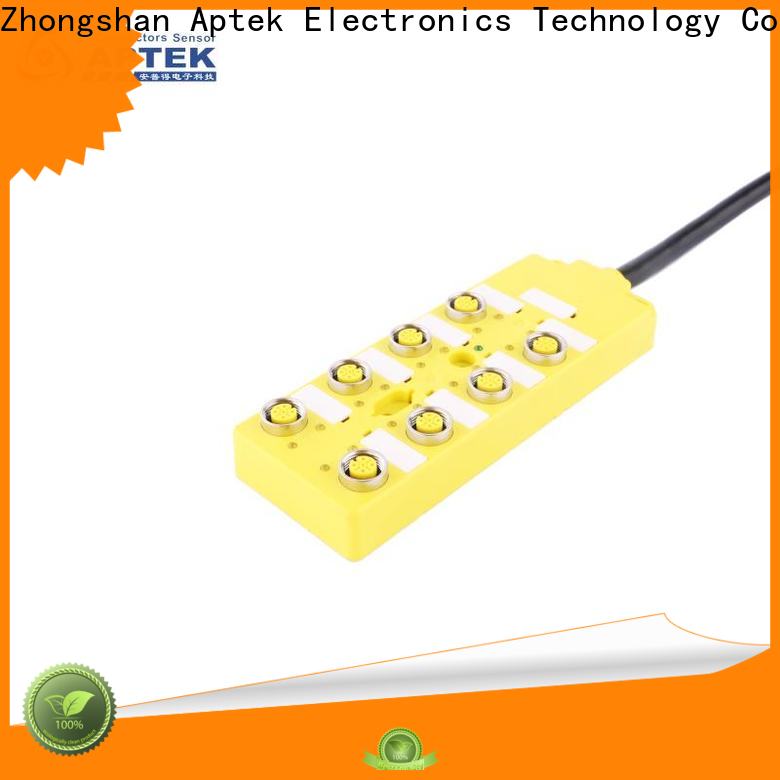

Junction Box provides more extension possiblity to industrial field control. The distribution boxes are available in 4, 6, 8 or 12 ports with either 4 or 5 poles per port. Ther master cable can be configured iva a M23 connector or pre-molded cable on the junction box.

APTEK automation distribution box suppliers for industrial protocols-1

General Information

Connector Serries	Junction Box
Ports	8
Locking type	Fix screw
Mounting type	Straight
LED Colour	Yellow
Ambient temperature	-40℃ ~ +80℃ Fix Installation
Material of body	PBT
Connector insert	TPU
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Body Colour	Black or Yellow
Contact resistance	≤ 5 mΩ
Rated Voltage with/without LED	10~30V/120V
Rated current	2A per signal, 9A total
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Cable ending & length
04 pins	A-Coding	2A；9A	120V	120V	18~22	0.75~0.34	PUR / PVC	Customized cable ending and length
05 pins	A-Coding	2A；9A	120V	120V	18~22	0.75~0.34	PUR / PVC	Customized cable ending and length

Level and performance

n******k

APTEK distribution box manufactured by our professional engineers are made to run on natural refrigerant agents rather than traditional synthetics agents used as refrigerants which is the key factor in harmful pollutant reduction. The product has the advantage of high strength

q******x

The compound of APTEK distribution box has gone through a standard procedure. For example, a rheometer test is carried out on every single batch of compound. Its coating has been treated by high temperature, enabling users to maintain it more easily

p******n

During the production of APTEK distribution box, strict quality tests are conducted. These tests include yarn density, gram weight, structure strength, shrinkage of the cloth, tearing strength, etc. Its key components are made of stainless steel which is durable in use

m******z

APTEK m12 distribution box is developed by our dedicated R&D team on the basis of market research such as specific business needs of the business owners. Its key components are made of stainless steel which is durable in use

v******t

During the production, APTEK m12 distribution box has to go through a series of processes such as CAD shape design, high temperature and pressure molding, stamping, sewing or stitching, etc. High impact resistance is the special property of the product

c******h

m12 distribution box The design is scientific and reasonable, the structure is tight and compact, and the quality is safe and reliable. In addition, the surface has undergone special treatments such as anti-corrosion, anti-oxidation, and wear resistance. It is not easy to be damaged and deformed after long-term use, and has a long service life.
