M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

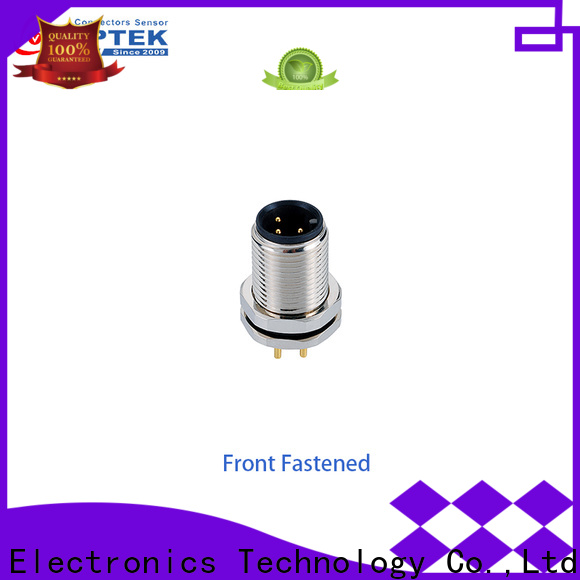

APTEK Best m12 panel mount connectors for business for industry-1

APTEK Best m12 panel mount connectors for business for industry-2

General Information

Connector Serries	M12
Gender	Male
Locking type	Fix screw
Mounting type	Straight angled
Standard	IEC 61076-2-101
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Mounting Thread	M12, PG9 or M16

Electrical data & Mechanical data

Contacts

Available Coding

Wire

Termination

Rated current

Voltage

Wire gauge/size

Cable

jacket

Wire insulation

Wiring list

Cable ending & length

A/C

D/C

AWG

mm²

03 pins

APTEK Best m12 panel mount connectors for business for industry-3

APTEK Best m12 panel mount connectors for business for industry-4

PCB

Version

250V

24AWG

0.34

PUR / PVC

PVC

1.BN brown
3.BU blue
4.BK black

Customized cable ending and length

04 pins

APTEK Best m12 panel mount connectors for business for industry-6

PCB

Version

250V

24AWG

0.34

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black

05 pins

APTEK Best m12 panel mount connectors for business for industry-8

APTEK Best m12 panel mount connectors for business for industry-9

PCB

Version

60V

24AWG

0.35

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey

08 pins

APTEK Best m12 panel mount connectors for business for industry-10

PCB

Version

30V

26AWG

0.25

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red

12 pins

APTEK Best m12 panel mount connectors for business for industry-11

PCB

Version

1.5A

30V

26AWG

0.14

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
9.VT violet
10.NV navy
11.OR orange
12.BK black

17 pins

APTEK Best m12 panel mount connectors for business for industry-12

PCB

Version

1.5A

30V

26AWG

0.14

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
9.VT violet
10.NV navy
11.OR orange
12.BK black
13.WH/GN white/green
14.WH/YE white/yellow
15.WH/GY white/grey
16.WH/RD white/red
17.OR orange

Level and performance

f******o

APTEK m12 round cable connectors goes through a series of production processes: grouting, demoulding, splicing, drilling holes, glaze spraying, and firing which are all carried out by professional workers. Its aluminum foil features strong fastness and high strength

d******p

The production of APTEK m12 round cable connectors is rigorous. Along with the materials that furnish the look and feel of a building, technologies applied are also highly demanded. The product can improve the stability of the electrocircuit effectively

b******t

Adopting cutting-edge technologies, APTEK m12 round cable connectors is manufactured to meet the Energy Labelling Scheme. It has been recognized by the Mandatory Energy Efficiency Labelling Scheme (MEELS) and Voluntary Energy Efficiency Labelling Scheme (VEELS). The product is highly resistant to high voltage

f******o

The Incoming Quality Control (IQC) of APTEK m12 round cable connectors is stringently carried out. It mainly involves measuring the precision of the electronic instrument and evaluating the quality of the components. The product is characterized by high ripple current

k******h

APTEK m12 round cable connectors is strictly manufactured according to GB or IEC. Its contactor, rheostat, control relay, and other electronic components are handled based on relevant electric and safety standards. It has a maximum service life of over 50,000 hours

u******w

Statistical quality control techniques are used in the production process to ensure consistent quality. The product can improve the stability of the electrocircuit effectively
