Company Advantages
1. APTEK m12 right angle connector undergoes strict QC inspection including workmanship control, random inspection, and routine inspection. These inspections prove to be helpful to the quality of the product, satisfying the requirements for gifts&crafts. Efficient response to all instructions from customers is a mission of APTEK
2. Our m12 right angle connector has stable performance, reliable quality, fine workmanship and unique shape, and has won the support and love of our customers.
3. In addition to quality that meets industry standards, this product has a longer life than other products. APTEK has a wide range of metric circular connectors and cable assembly that fit almost all standards
4. Under the strict supervision of quality experts, 100% of the products have passed the conformance test. APTEK is a focus on industrial connectors for nearly 10 years
5. A number of quality tests will be carried out to ensure that products meet industry quality standards. APTEK, founded in 2009, focuses on developing connectors & sensors

M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

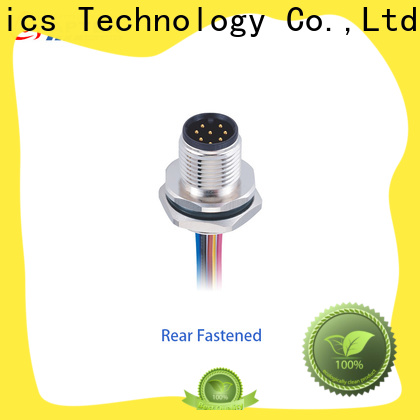

APTEK Best m12 right angle connector for business for engineering-1

APTEK Best m12 right angle connector for business for engineering-2

General Information

Connector Serries	M12
Gender	Male
Locking type	Fix screw
Mounting type	Straight angled
Standard	IEC 61076-2-101
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Mounting Thread	M12, PG9 or M16

Electrical data & Mechanical data

Contacts

Available Coding

Wire

Termination

Rated current

Voltage

Wire gauge/size

Cable

jacket

Wire insulation

Wiring list

Cable ending & length

A/C

D/C

AWG

mm²

03 pins

APTEK Best m12 right angle connector for business for engineering-3

APTEK Best m12 right angle connector for business for engineering-4

Solder

Version

250V

24AWG

0.34

PUR / PVC

PVC

1.BN brown
3.BU blue
4.BK black

Customized cable ending and length

04 pins

APTEK Best m12 right angle connector for business for engineering-6

Solder

Version

250V

24AWG

0.34

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black

05 pins

APTEK Best m12 right angle connector for business for engineering-8

APTEK Best m12 right angle connector for business for engineering-9

Solder

Version

60V

24AWG

0.35

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey

08 pins

APTEK Best m12 right angle connector for business for engineering-10

Solder

Version

30V

26AWG

0.25

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red

12 pins

APTEK Best m12 right angle connector for business for engineering-11

Solder

Version

1.5A

30V

26AWG

0.14

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
9.VT violet
10.NV navy
11.OR orange
12.BK black

17 pins

APTEK Best m12 right angle connector for business for engineering-12

Solder

Version

1.5A

30V

26AWG

0.14

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
9.VT violet
10.NV navy
11.OR orange
12.BK black
13.WH/GN white/green
14.WH/YE white/yellow
15.WH/GY white/grey
16.WH/RD white/red
17.OR orange

Level and performance
