The series of industrial I/O connectors have been specially developed for using in the harsh industrial environment for the interfaces on the industrial machine or its control cabinet.

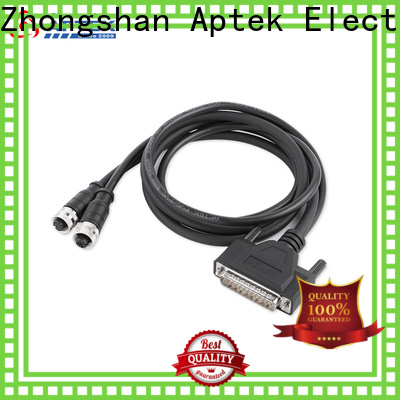

APTEK connector cable assembly for sale for industry-1

General Information

Connector Serries	Industrial I/O Connectors
Gender	Male + Female
Locking type	Fix screw
Mounting type	Straight
Connector	M12 Female x 2, D-Sub 25Pin Male x 1
Ambient temperature	-25℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring	FKM

Electrical data & Mechanical data

Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Cable Sepc	Cable ending & length
	A/C	D/C	AWG	mm²
0.5A	48V	60V	24~27AWG	0.14~0.25	PUR / PVC	HDPE	CAT 6A	Customized cable ending and length

Level and performance

q******v

The raw materials of APTEK cable assembly are of high quality. It is sourced from top grade suppliers whose materials are in line with the quality standards.

b******r

The production process of APTEK cable assembly is streamlined, minimizing the waste.

p******n

The design of APTEK medical cable assemblies is elaborately designed with the combination of functionality and aesthetics.

w******b

To ensure APTEK medical cable assemblies is always made of high-quality materials, we have established strict standards of material selection and supplier evaluation.

p******p

Innovative design concept: the design concept of APTEK medical cable assemblies is carried out by a team of professionals who keep innovative ideas in mind and thus the innovation-oriented product is made.

g******y

The long-lasting and stable performance makes this product a great advantage in the industry.
