APTEK Custom m12 connector standard company for engineering

APTEK Custom m12 connector standard company for engineering

Connector Series
M12
Locking type
Fix screw
Mounting type
Straight / Right angled
Standard
IEC 61076-2-101
Connector overmold
TPE/ TPU
Coupling nut/screw
Brass with nickel plated
Locking Design
Anti-Vibration
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Company Advantages
1. APTEK m12 molded cable connectors has audacious and unique design style. Efficient response to all instructions from customers is a mission of APTEK
2. Zhongshan Aptek Electronics Technology Co.,Ltd has the most advanced patented technology and strong R&D capabilities for m12 connector standard in the world today. Even small customized lots could be accepted by APTEK
3. The product is resistant to vibration. It is not affected by the movements of the device or the external factors. APTEK is a focus on industrial connectors for nearly 10 years
4. The product is shockproof. Its static ring has excellent floatability, providing a buffering function for its parts during the mechanical movement. At APTEK, certificates such as ROHS and UL are strong evidence of our capabilities

M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

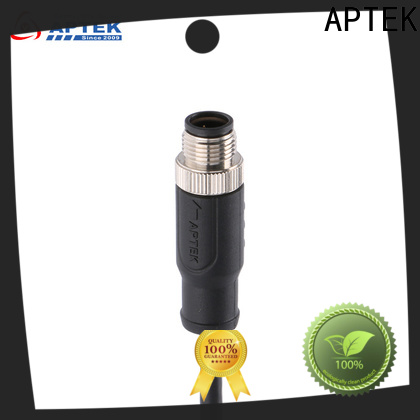

APTEK Custom m12 connector standard company for engineering-1
APTEK Custom m12 connector standard company for engineering-2



General Information


Connector SerriesM12
GenderMale
Locking typeFix screw
Mounting typeStraight / Right angled
StandardIEC 61076-2-101
Ambient temperature-20℃ ~ +80℃
Connector overmoldTPE/ TPU
Connector insertPA
Connector contactsBrass with gold plated
Coupling nut/screwBrass with nickel plated
Insulation resistance≥100 MΩ
Contact resistance≤ 5 mΩ
EMI ShieldingShielded
IP rating:IP 67 in locked condition
Locking Design:Anti-Vibration


Electrical data & Mechanical data


ContactsAvailable CodingRated currentVoltageWire gauge/sizeCable jacketWire insulationWiring listCable ending & length
ABDA/CD/CAWGmm²
02 pins

APTEK Custom m12 connector standard company for engineering-3





4A250V250V24AWG0.34PUR / PVCPVC1.BN brown
2.WH white
Customized cable ending and length
03 pins

APTEK Custom m12 connector standard company for engineering-4

APTEK Custom m12 connector standard company for engineering-5



4A250V250V24AWG0.34PUR / PVCPVC1.BN brown
3.BU blue
4.BK black
04 pins

APTEK Custom m12 connector standard company for engineering-6

APTEK Custom m12 connector standard company for engineering-7

APTEK Custom m12 connector standard company for engineering-8

4A250V250V24AWG0.34PUR / PVCPVC1.BN brown
2.WH white
3.BU blue
4.BK black
05 pins

APTEK Custom m12 connector standard company for engineering-9

APTEK Custom m12 connector standard company for engineering-10



4A60V60V24AWG0.35PUR / PVCPVC1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
06 pins

APTEK Custom m12 connector standard company for engineering-11





2A30V30V26AWG0.25PUR / PVCPVC1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
08 pins

APTEK Custom m12 connector standard company for engineering-12





2A30V30V26AWG0.25PUR / PVCPVC1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
12 pins

APTEK Custom m12 connector standard company for engineering-13





1.5A30V30V26AWG0.14PUR / PVCPVC1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
9.VT violet
10.NV navy
11.OR orange
12.BK black
17 pins

APTEK Custom m12 connector standard company for engineering-14





1.5A30V30V26AWG0.14PUR / PVCPVC1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
9.VT violet
10.NV navy
11.OR orange
12.BK black
13.WH/GN white/green
14.WH/YE white/yellow
15.WH/GY white/grey
16.WH/RD white/red
17.OR orange


Level and performance



Company Features
1. APTEK takes pride in recommending the m12 connector standard to customers. Our products have been utilized by some of the most prominent brands and they have become staple to successful manufacturing. There are more customers are looking forward to co-operating with us.
2. We have a professional quality assurance team. They can ensure the right processes in place across the manufacturing operations that can provide significant products to satisfy customers' demands.
3. The factory thoroughly implements a quality management system. We carry out an inspection for all the sourced materials, do daily routine measurement records for each production step, and make sure every piece of products is finely inspected. We will achieve a balance between business profit and environment protection. Now, we have made significant progress in reducing waste pollution, including water and waste gas pollution.
APTEK m12 molded cable connectors is produced using optimum quality materials which we source from trusted vendors of the market. It is easy to manipulate, allowing the operator to get used to the controls and operate it in a safe way
The materials employed in the production of APTEK m12 connector standard is up to the international standard. It embodies the most advanced materials and technology exclusively adopted by Unique Group that have ever been found on the market
m12 connector standard is unusual in design and appropriate in size. Its capacity can be customized based on your construction needs
The raw materials of APTEK m12 molded cable connectors mainly comes from licensed suppliers.
APTEK m12 connector standard is made with advanced production equipment and fine production technology. All parts and accessories of this product come from renowned suppliers of the engineering industry
m12 connector standard Selected high-quality materials are manufactured using cutting-edge technologies and processes in the industry. They have good performances such as shock resistance, drop resistance, water and dust resistance, wear resistance and compression resistance. They are durable and have a long service life.
