M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

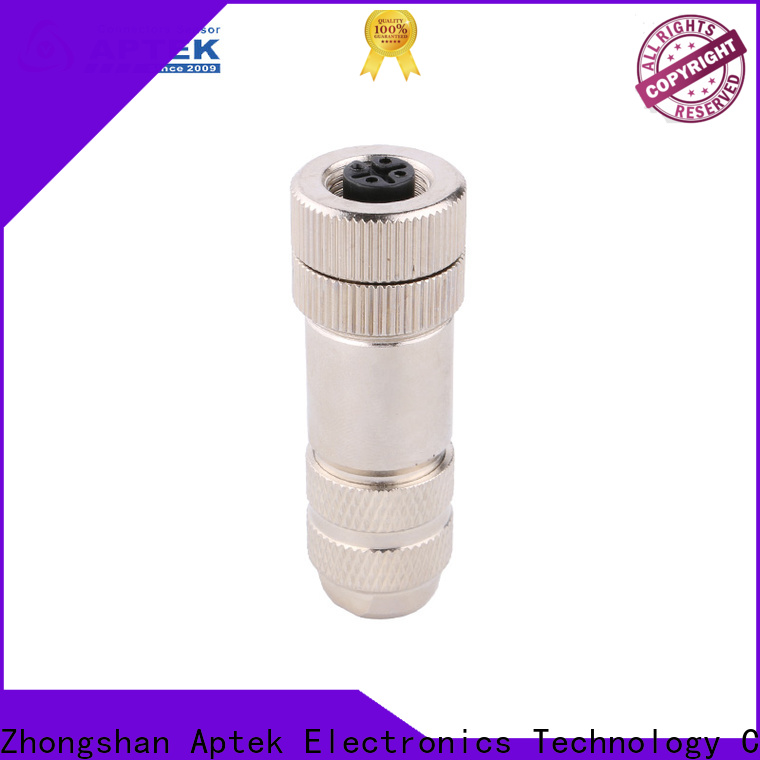

APTEK Custom m12 connectors factory for engineering-1

General Information

Connector Serries	M12
Gender	Female
Locking type	Fix screw
Mounting type	Straight
Mounting thread	PG7 or PG9
Standard:	IEC 61076-2-101
Ambient temperature:	-25℃ ~ +80℃
Connector body:	Zinc alloy with nickel plated
Connector insert:	PA + GF
Connector contacts:	Brass with gold plated
Coupling nut/screw:	Brass with nickel plated
Insulation resistance:	≥100 MΩ
Contact resistance:	≤ 5 mΩ
EMI Shielding:	Shielded
Suitable cable Dia:	6.0 ~ 8.0mm
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration

Electrical data & Mechanical data

Contacts	Available Coding			Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	A	B	D	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins				4A	250V	250V	18 ~26AWG	0.75~0.14	PVC	Customized cable ending and length
04 pins				4A	250V	250V	18 ~26AWG	0.75~0.14	PVC
05 pins				4A	60V	60V	18 ~26AWG	0.75~0.14	PVC
08 pins				2A	30V	30V	18 ~26AWG	0.75~0.14	PVC

Level and performance

f******w

Zhongshan Aptek Electronics Technology Co.,Ltd has a team with rich production experience and strong production capacity, and learns from foreign advanced technology, equipped with the most advanced m12 din connector production equipment, which provides a strong guarantee for the excellent quality of m12 din connector.

y******t

The m12 din connector of Zhongshan Aptek Electronics Technology Co.,Ltd uses high-quality materials, exquisite workmanship, scientific structure, advanced design concept, and the finished product has the advantages of high precision, good durability, and high economic value.

i******f

As a professional m12 din connector manufacturer, Zhongshan Aptek Electronics Technology Co.,Ltd has rich production experience, advanced production equipment, superb production technology and strong production strength, capable of producing high-quality m12 din connector.

m******l

m12 connectors Carefully designed by professional designers, the design is scientific and reasonable, and selected high-quality raw materials are processed with advanced technology to make it of excellent quality and more durable.

e******b

m12 connectors of Zhongshan Aptek Electronics Technology Co.,Ltd is made of selected high-quality materials, and the overall design is scientific and reasonable, the finished product is of good quality, and has a high market value.

j******p

The product is rigorously tested on various parameters of quality to ensure high durability. Vacuum cast parts offered by Gaojie have helped to pave the way towards full-scale production on many successful and famous products used in commercial, industrial and scientific applications around the world
