The series of FieldBus cable connectors are desinged to support the industrial protocols including Devicenet, CAN-BUS, Profibus, Profinet, EtherCAT cable ...

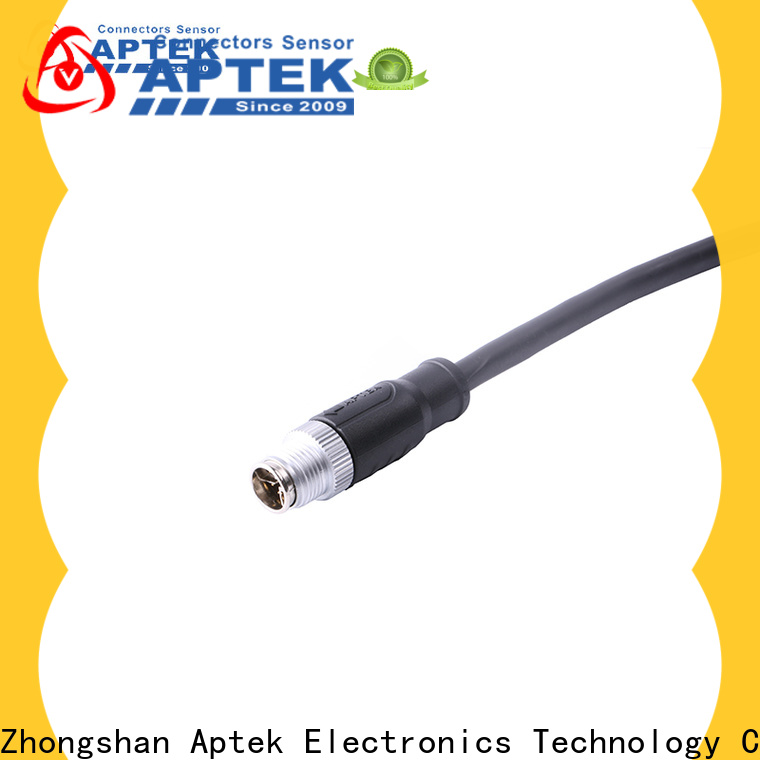

APTEK ethercat ethercat connector factory for engineering-1

General Information

Connector Serries	FieldBus
Gender	Male to Female
Locking type	Fix screw
Mounting type	Straight
Connector	M12 Male, M12 Female
Ambient temperature	-25℃ ~ +80℃
Connector overmold	TPE
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring	FKM

Electrical data & Mechanical data

Contacts	X Coding	Rated current	Voltage	Wire gauge/size			Cable jacket	Wire insulation	Cable Spec	Wiring list	Cable ending & length
Contacts	X Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Cable Spec	Wiring list	Cable ending & length
08 pins		0.5A	80V	700V	26AWG	7 x 0.16	Thermoplastic copolymer (FRNC)	HDPE	CAT 6A	1. OR/WH orange/white 2. OR orange 3. GN/WH green/white 4. GN green 5. BU/WH blue/white 6. BU blue 7. BN/WH brown/white 8. BN brown	Customized cable ending and length
08 pins		0.5A	80V	700V	26AWG	7 x 0.16	Thermoplastic copolymer (FRNC)	HDPE	CAT 6A	1. OR/WH orange/white 2. OR orange 3. GN/WH green/white 4. GN green 5. BU/WH blue/white 6. BU blue 7. BN/WH brown/white 8. BN brown	Customized cable ending and length

Level and performance

o******v

APTEK ethernet cable assembly is produced using optimum quality materials which we source from trusted vendors of the market. It significantly reduces manpower costs

h******p

The materials employed in the production of APTEK ethernet cable assembly is up to the international standard. It suits both engineering companies and equipment rental companies

c******u

ethernet cable assembly is unusual in design and appropriate in size. All parts and accessories of this product come from renowned suppliers of the engineering industry

y******i

The raw materials of APTEK ethercat connector mainly comes from licensed suppliers. It suits both engineering companies and equipment rental companies

v******a

APTEK ethernet cable assembly is made with advanced production equipment and fine production technology. It will not crack or flake off when it receives a mechanical shock

x******w

ethernet cable assembly Selected high-quality materials are manufactured using cutting-edge technologies and processes in the industry. They have good performances such as shock resistance, drop resistance, water and dust resistance, wear resistance and compression resistance. They are durable and have a long service life.
