M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

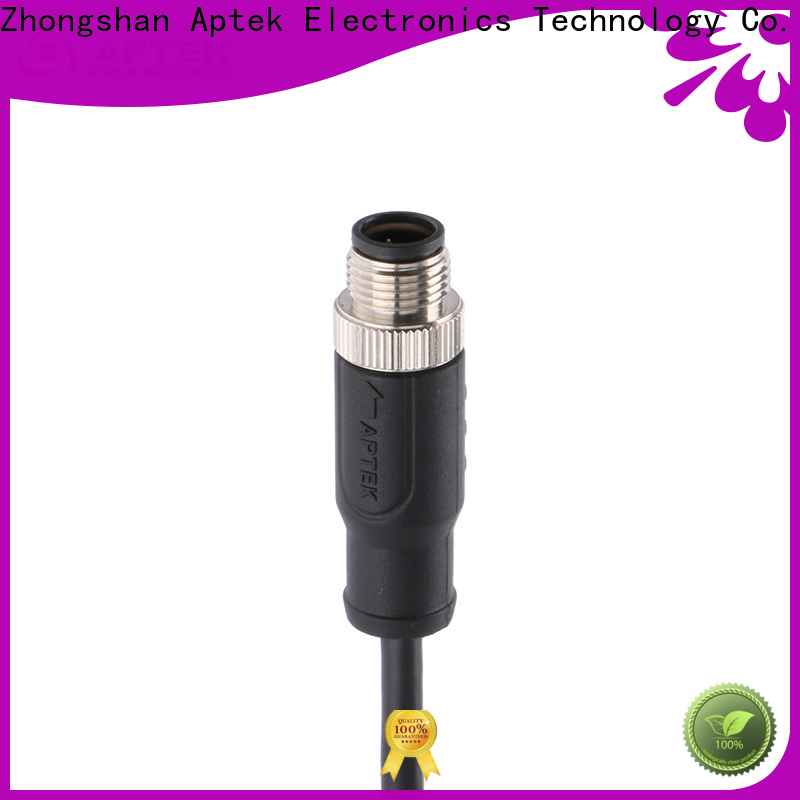

APTEK High-quality m12 right angle connector suppliers for industry-1

APTEK High-quality m12 right angle connector suppliers for industry-2

General Information

Connector Serries	M12
Gender	Male
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-101
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration

Electrical data & Mechanical data

Contacts

Available Coding

Rated current

Voltage

Wire gauge/size

Cable jacket

Wire insulation

Wiring list

Cable ending & length

A/C

D/C

AWG

mm²

02 pins

APTEK High-quality m12 right angle connector suppliers for industry-3

250V

24AWG

0.34

PUR / PVC

PVC

1.BN brown
2.WH white

Customized cable ending and length

03 pins

APTEK High-quality m12 right angle connector suppliers for industry-4

APTEK High-quality m12 right angle connector suppliers for industry-5

250V

24AWG

0.34

PUR / PVC

PVC

1.BN brown
3.BU blue
4.BK black

04 pins

APTEK High-quality m12 right angle connector suppliers for industry-6

APTEK High-quality m12 right angle connector suppliers for industry-7

APTEK High-quality m12 right angle connector suppliers for industry-8

250V

24AWG

0.34

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black

05 pins

APTEK High-quality m12 right angle connector suppliers for industry-9

APTEK High-quality m12 right angle connector suppliers for industry-10

60V

24AWG

0.35

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey

06 pins

APTEK High-quality m12 right angle connector suppliers for industry-11

30V

26AWG

0.25

PUR / PVC

PVC

1.BN brown
2. WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink

08 pins

APTEK High-quality m12 right angle connector suppliers for industry-12

30V

26AWG

0.25

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red

12 pins

APTEK High-quality m12 right angle connector suppliers for industry-13

1.5A

30V

26AWG

0.14

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
9.VT violet
10.NV navy
11.OR orange
12.BK black

17 pins

APTEK High-quality m12 right angle connector suppliers for industry-14

1.5A

30V

26AWG

0.14

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
9.VT violet
10.NV navy
11.OR orange
12.BK black
13.WH/GN white/green
14.WH/YE white/yellow
15.WH/GY white/grey
16.WH/RD white/red
17.OR orange

Level and performance

n******v

Each step is strictly monitored by the professional quality inspection department. A continuous inspection system is implemented to ensure the high quality of this product. This product is notable for its strong overload capacity

q******f

The adoption of advanced equipment and the lean production method make APTEK m12 right angle connector more cost-effective. This product features very low no-load losses

c******q

The source of raw materials: before APTEK m12 round cable connectors comes out, it is processed from high quality raw materials. These materials are sourced from several different places within and out of the region. Due to its corrosive coatings, this product is highly rust-proof

l******w

APTEK m12 round cable connectors is manufactured with accuracy in specifications. It works stably under strong impact and vibration conditions

a******e

Strong designer team: APTEK m12 right angle connector is designed by our design team who are powerful with professional design knowledge. They are also well-trained to put forward design concept and complete the design in a short time. Its power ratings can be customized e based on requests

n******g

It has a low fabric shrinkage rate. The fabric has been treated under steam or atomizing, extruded by machine, and dried, which makes the shrinkage rate drop to 1% or lower. This product is not susceptible to cracks
