The series of M5 circular connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

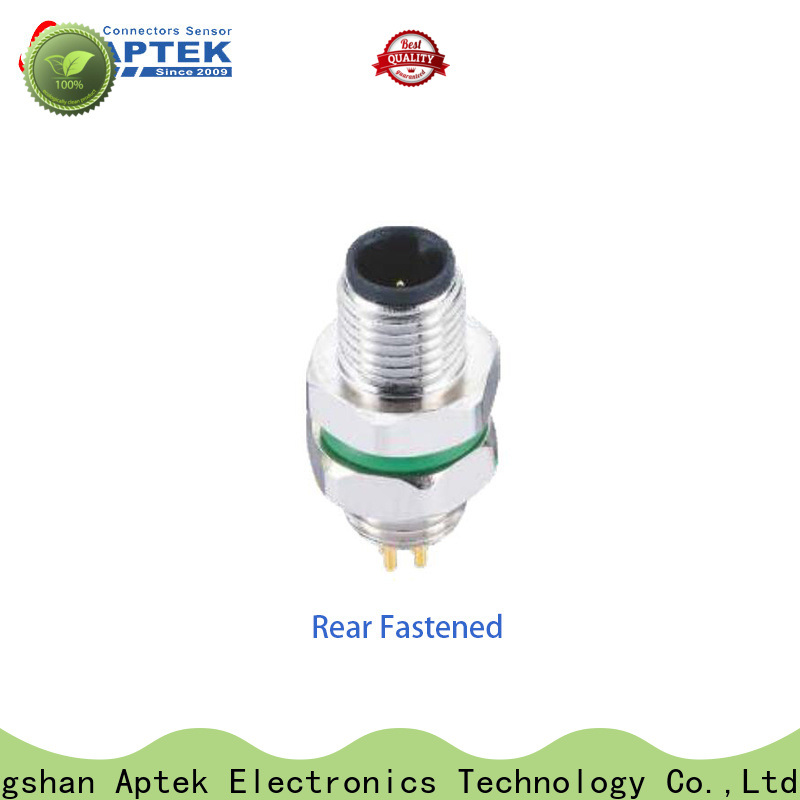

APTEK Latest circular cable connectors manufacturers for industry-1

APTEK Latest circular cable connectors manufacturers for industry-2

General Information

Connector Serries	M5
Gender	Male
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-105
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Wire Termination	Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	Coding	Wire Termination	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins	A-Coding	PCB Version	1A	60V	60V	26AWG	0.14	PVC	Customized cable ending and length
04 pins	A-Coding	PCB Version	1A	60V	60V	26AWG	0.14	PVC	Customized cable ending and length

Level and performance

p******n

APTEK circular cable connectors is of a harmony design. This is achieved through judicious use of color, shape, and texture to give a feeling of oneness. Hoone can customize products to satisfy the needs of customers

g******o

APTEK m5 non-shielded cable connectors is created with the appropriate fabric which is chosen on the basis of fashion trends, quality, performance, price, and suitability. Made of first-rate raw materials, Hoone products enjoy strong durability

k******v

The design of APTEK m5 non-shielded cable connectors follows the Unity Principle which refers to all elements of the design being in harmony, reflecting a sense of completeness. Made of first-rate raw materials, Hoone products enjoy strong durability

e******x

The design of APTEK circular cable connectors is governed by a set of principles which are emphasis, rhythm, unity, balance and scale, and proportion. The quality of raw materials can be greatly guaranteed

d******s

APTEK circular cable connectors is of flexible design. It is created by our designers who understand elements of design and use them in different ways to produce different kinds of art/objects and visual effects. Made of first-rate raw materials, Hoone products enjoy strong durability

a******f

No critical defects can be found on this product, namely hazardous or unsafe conditions or non-compliance with regulations include sharp points or edges, stray needles left in the garment, loose studs or missing suffocation warning labels. Good shape retention is one of the advantageous features of Hoone products
