APTEK Latest m12 field attachable connectors manufacturers for industry

APTEK Latest m12 field attachable connectors manufacturers for industry

Connector Series
M12
Locking type
Fix screw
Mounting type
Straight
Standard
IEC 61076-2-101
Locking Design
Anti-Vibration
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

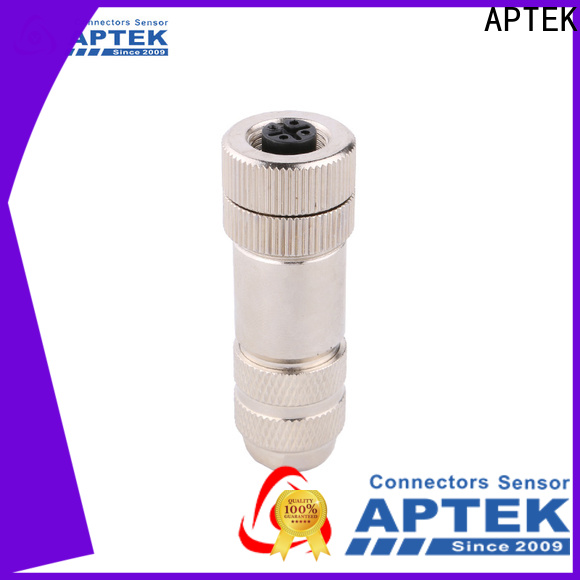

APTEK Latest m12 field attachable connectors manufacturers for industry-1


General Information


Connector SerriesM12
GenderFemale
Locking typeFix screw
Mounting typeStraight
Mounting threadPG7 or PG9
Standard:IEC 61076-2-101
Ambient temperature:-25℃ ~ +80℃
Connector body:Zinc alloy with nickel plated
Connector insert:PA + GF
Connector contacts:Brass with gold plated
Coupling nut/screw:Brass with nickel plated
Insulation resistance:≥100 MΩ
Contact resistance:≤ 5 mΩ
EMI Shielding:Shielded
Suitable cable Dia:6.0 ~ 8.0mm
IP rating:IP 67 in locked condition
Locking Design:Anti-Vibration


Electrical data & Mechanical data


ContactsAvailable CodingRated currentVoltageWire gauge/sizeWire insulationCable ending & length
ABDA/CD/CAWGmm²
03 pins

APTEK Latest m12 field attachable connectors manufacturers for industry-2

APTEK Latest m12 field attachable connectors manufacturers for industry-3



4A250V250V18 ~26AWG0.75~0.14PVCCustomized cable ending and length
04 pins

APTEK Latest m12 field attachable connectors manufacturers for industry-4

APTEK Latest m12 field attachable connectors manufacturers for industry-5

APTEK Latest m12 field attachable connectors manufacturers for industry-6

4A250V250V18 ~26AWG0.75~0.14PVC
05 pins

APTEK Latest m12 field attachable connectors manufacturers for industry-7

APTEK Latest m12 field attachable connectors manufacturers for industry-8



4A60V60V18 ~26AWG0.75~0.14PVC
08 pins

APTEK Latest m12 field attachable connectors manufacturers for industry-9





2A30V30V18 ~26AWG0.75~0.14PVC


Level and performance



APTEK m12 field attachable connectors is continually tested to ensure that its key performance meets the safety standards required in the office supplies&accessories industry. It has passed the tensile strength test and tape retentivity test
In the production of APTEK m12 4 pin connector cable, basic quality and safety inspection and evaluation are carried out at every production stage. Besides, the certificate of qualification for this product is available for the buyers' review. It can be used by hands or automatic carton sealing machines
APTEK m12 4 pin connector cable is developed by our in-house professional R&D team. The team is well-trained and have years of experience in the office supplies and office machine industry. The product is often used in the automotive painting, circuit board (PCB) processing, and mending and bunding
APTEK m12 field attachable connectors is manufactured according to the quality and safety criteria in the light industry, culture, and daily necessities industry. In addition, it is produced complying with customers' requirements. With strong acrylic adhesive, the product is distinguished by excellent holding force
APTEK m12 4 pin connector cable is manufactured strictly complying with the quality and security standards in the office supplies industry to make sure it is safe and harmless for users. The product provides protection against light, heat, and oxygen
Our m12 4 pin connector cable is able to undergo the strict tests thanks to m12 field attachable connectors. This product is widely used in the fields of industrial packaging, offices, advertising, shipping, etc
