The series of M5 circle connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

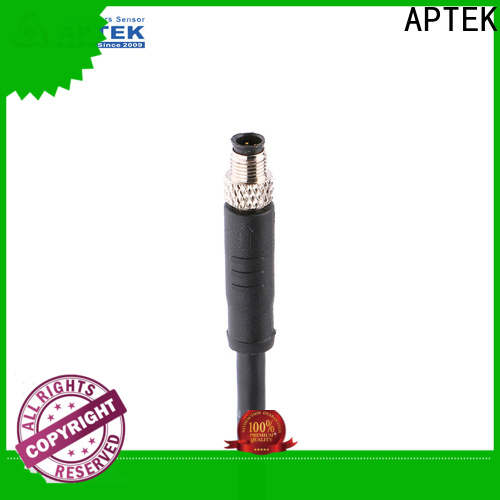

APTEK Latest m5 circular connector factory for packaging machine-1

APTEK Latest m5 circular connector factory for packaging machine-2

General Information

Connector Serries	M5
Gender	Male
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-105
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	1A	60V	60V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	1A	60V	60V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black	Customized cable ending and length
