The series of FieldBus cable connectors are desinged to support the industrial protocols including Devicenet, CAN-BUS, Profibus, Profinet, EtherCAT cable ...

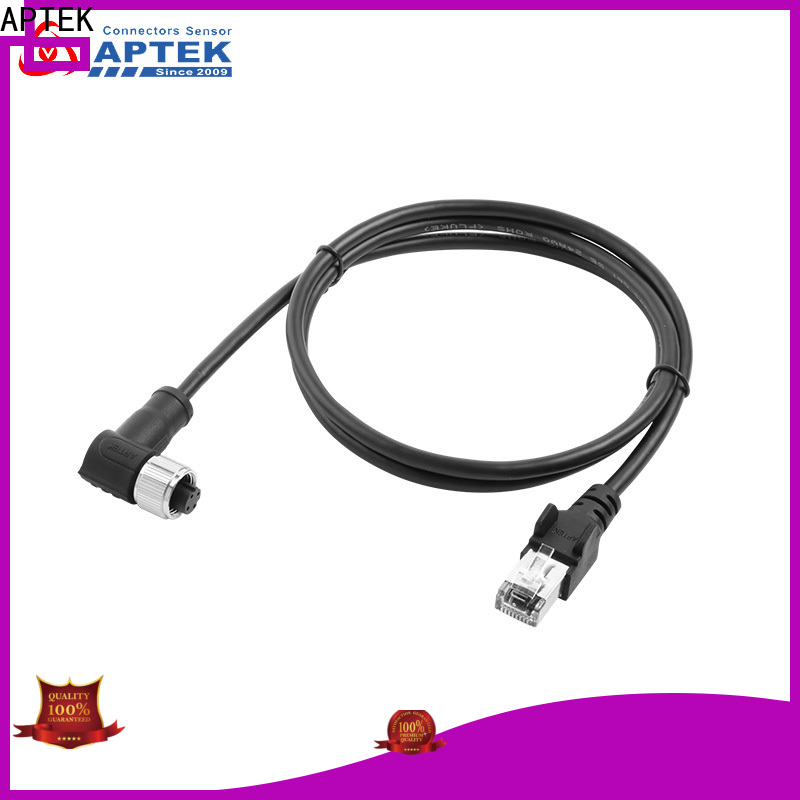

APTEK m12 profibus connector supply for industrial protocols-1

General Information

Connector Serries	FieldBus
Gender	Female
Locking type	Fix screw
Mounting type	Right Angled
Connector	M12 Female, RJ45 CAT 5E
Ambient temperature	-25℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring	FKM

Electrical data & Mechanical data

Contacts	Available Coding		Rated current	Voltage	Wire gauge/size			Cable jacket	Wire insulation	Wiring list	Cable ending & length
Contacts	A	D	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Wiring list	Cable ending & length
04 pins			4A	250V	250V	24AWG	0.34	PVC	HDPE	1.BN brown 2.WH white 3.BU blue 4.BK black	Customized cable ending and length
08 pins			2A	30V	30V	26AWG	0.25	PVC	HDPE	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey 6.PK pink 7.BU blue 8.RD red	Customized cable ending and length

Level and performance

w******y

APTEK profibus connector has to go through a broad array of evaluation. It is assessed to meet local and international standards for electrical safety, sanitation, EMC, energy efficiency, and more. The product does not need much maintenance

u******e

APTEK profibus connector involves different manufacturing processes. These processes may include cold stamping, plastic pressing, insulation, resistance welding, and electrical component heat treatment. The product does not need much maintenance

u******r

APTEK ethernet cable connector is exclusively designed. Many factors have been taken into considerations, from the circuit diagram to PCB CAD design or PCB layout. With sensors to detect the position in real-time, it guarantees high precision

k******p

The design of APTEK ethernet cable connector takes advantage of high-tech. Its parts drawing, assembly drawing, arrangement diagram, schematic diagram, and shaft drawing are all available by the mechanical drawing technologies. The product does not generate toom many noises

a******k

APTEK ethernet cable connector is sophisticatedly designed. Our architects and engineers consider many issues when working with the design, including environmental issues, aesthetic appearance, occupant comfort, and view.

e******u

profibus connector ensures ethernet cable connector to be operated on the safe side. Featuring high automation, it helps reduce labor intensity
