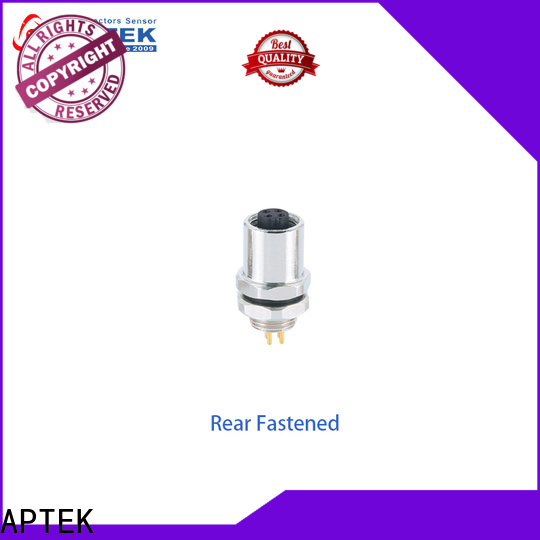

The series of M5 circular connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

APTEK male circular connectors supply for industry-1

APTEK male circular connectors supply for industry-2

General Information

Connector Serries	M5
Gender	Female
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-105
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Wire termination	Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	Coding	Wire termination	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins	A-Coding	PCB Version	1A	60V	60V	26AWG	0.14	PVC	Customized cable ending and length
04 pins	A-Coding	PCB Version	1A	60V	60V	26AWG	0.14	PVC	Customized cable ending and length

Level and performance

p******q

APTEK m5 emi shield cable connector is produced strictly according to requirements stipulated in the electric appliance industry. It has passed the circuit test, EMI test, insulation test, and overload test. It features special seams, allowing users to adjust it in different positions to ensure comfort

z******y

APTEK circular connectors has gone through the assessment. It has been checked in terms of magnetic and electromagnetic fields, harmful radiation, noises, temperatures, biological and chemical effects, electrical shock, etc. It is highly customizable in terms of color

a******f

APTEK m5 emi shield cable connector is of rational design. Its idea is from a design team composed of Industrial designers and architects who understand the fundamentals of shape, form, and function. It is ideal for any sportsperson and can also be worn as a precautionary measure by manual laborers doing physically demanding work

p******o

APTEK m5 emi shield cable connector is formulated using two distinct strategies, namely technology and market (or customer-driven). Its design is based on the architect’s aesthetic vision as well as the everchanging customer requirement. It protects the skin from scratches and bruises

t******x

APTEK circular connectors has been certified under some certificates in domestic and overseas. These certificates are mainly National Compulsory Product Certification (CCC), IEC Safety Standards for Electric Appliances, and RoHS. Available in XXS, XS, and small sizes, it means people can always get the perfect compression fit for more effectiveness

s******a

This product has been reviewed and certified to meet the most stringent quality requirements. It can be designed with expansion pleats for extra comfort and flexibility
