The series of M5 circular connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

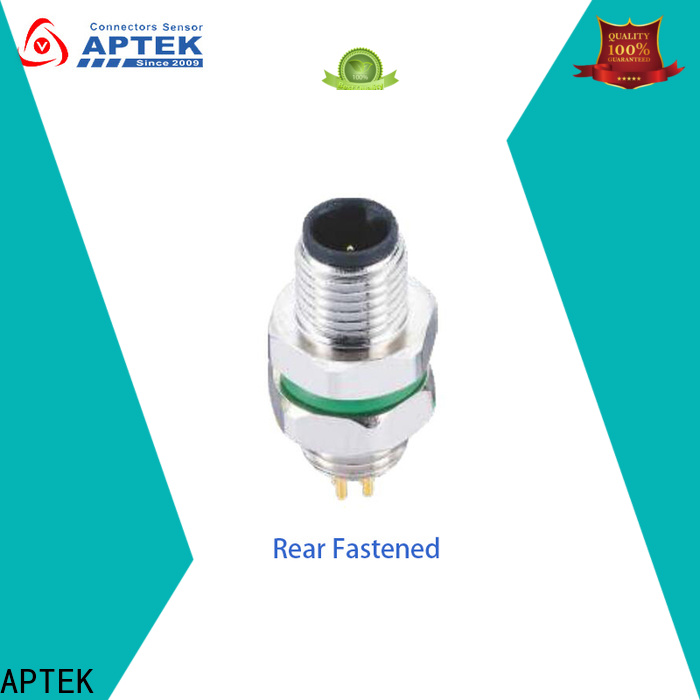

APTEK male m5 circular connector for business for industry-1

APTEK male m5 circular connector for business for industry-2

General Information

Connector Serries	M5
Gender	Male
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-105
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Wire Termination	Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	Coding	Wire Termination	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins	A-Coding	PCB Version	1A	60V	60V	26AWG	0.14	PVC	Customized cable ending and length
04 pins	A-Coding	PCB Version	1A	60V	60V	26AWG	0.14	PVC	Customized cable ending and length

Level and performance

p******s

There are many important parameters being considered in APTEK m5 circular connector design. They are strength, stiffness or rigidity, wear resistance, lubrication, ease of assembly, etc. It will bond instantly as soon as people apply it and add pressure to it, saving the time waiting for the adhesive to cure

n******p

APTEK m5 circular connector is meticulously produced. Its manufacturing processes include areas such as computerized machine control, engineering statistics, ergonomics, and life cycle analysis. It is not likely to tear paint off the base materials

z******g

APTEK m5 circular connector is required to go through a range of tests. It has passed the tests such as drop or shock testing, hardness testing, mechanical properties, and mechanism cycling movement endurance.

h******v

APTEK m5 circular connector is designed with a range of protection systems. It is built with overpressure, overload, electric circuits, and loss of voltage protection. This product can be applied in the various base materials, such as wood, metal, plastics, leather, and paper

l******j

The design of APTEK m5 female connector follows the many basic principles. They are mainly mechanical properties, static and dynamic structure, safety, cycle time and so on. Its thickness allowance will be controlled within 3

b******a

The product is tested again and again ensuring long service life. It has good temperature resistance performance
