The series of M5 circular connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

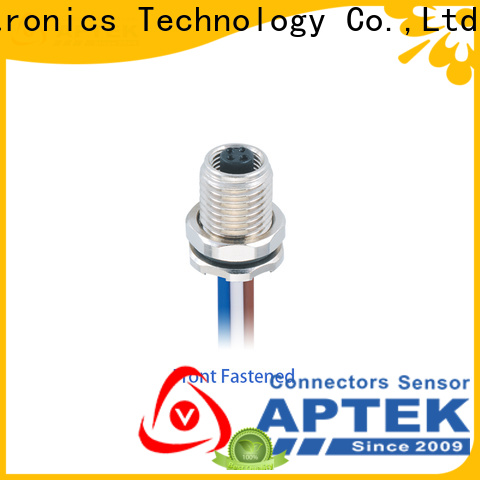

APTEK molded circular cable connectors factory for engineering-1

APTEK molded circular cable connectors factory for engineering-2

General Information

Connector Serries	M5
Gender	Female
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-105
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	1A	60V	60V	26AWG	0.14	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	1A	60V	60V	26AWG	0.14	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black	Customized cable ending and length

Level and performance

d******c

APTEK circular cable connectors has to go through a broad array of evaluation. It is assessed to meet local and international standards for electrical safety, sanitation, EMC, energy efficiency, and more. Adopting a whole frame casting structure, it's not prone to deform

d******e

APTEK circular cable connectors involves different manufacturing processes. These processes may include cold stamping, plastic pressing, insulation, resistance welding, and electrical component heat treatment. The product is applied to the production of medium-sized to large-scale batches

j******r

APTEK m5 male connector is exclusively designed. Many factors have been taken into considerations, from the circuit diagram to PCB CAD design or PCB layout. With a robust structure, it does not vibrate during operation

h******i

The design of APTEK circular cable connectors takes advantage of high-tech. Its parts drawing, assembly drawing, arrangement diagram, schematic diagram, and shaft drawing are all available by the mechanical drawing technologies.

u******g

APTEK m5 male connector is sophisticatedly designed. Our architects and engineers consider many issues when working with the design, including environmental issues, aesthetic appearance, occupant comfort, and view. Manufactured with Japan's advanced spare parts, it features high performance

s******q

m5 male connector ensures circular cable connectors to be operated on the safe side.
