1. APTEK has guaranteed the applications of connectors in food & beverage, chemicals, wood, LED lighting, etc The body frame of circular connectors can be m5 male connector .
2. Except for adopting superior material, circular connectors is produced on sophisticated equipment. At APTEK, there are highly efficient production lines for cable cutting, soldering, crimping, etc
3. The raw material cost, labor cost, and processing cost of our circular connectors are lower than the market average, so compared with other similar products, the price advantage of our connector m5 is more obvious.
4. Zhongshan Aptek Electronics Technology Co.,Ltd has always adhered to the business philosophy of 'integrity-based, quality-based', strictly controlled product quality and production costs, and produced circular connectors with high quality and affordable prices, which are more cost-effective compared with similar products.

The series of M5 circular connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

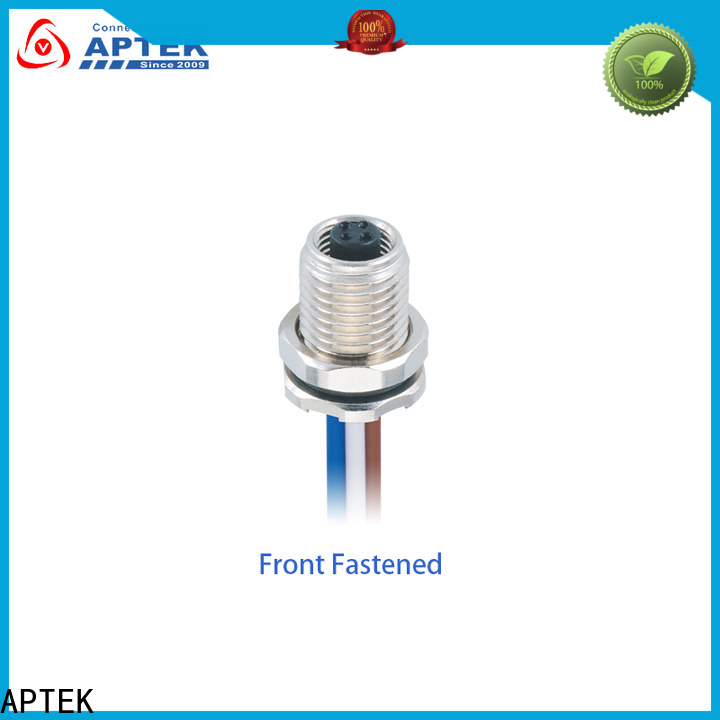

APTEK molded circular connectors manufacturers for engineering-1

APTEK molded circular connectors manufacturers for engineering-2

General Information

Connector Serries	M5
Gender	Female
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-105
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	1A	60V	60V	26AWG	0.14	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	1A	60V	60V	26AWG	0.14	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black	Customized cable ending and length
