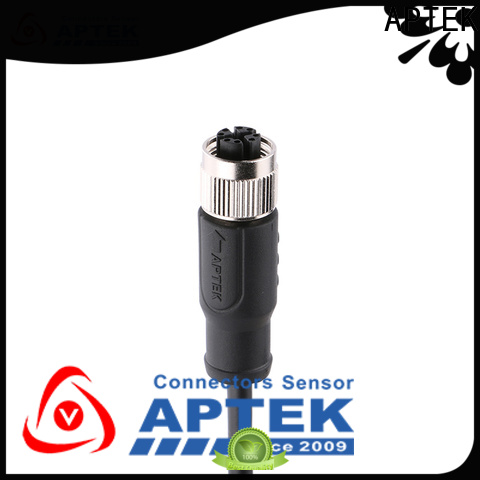

M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.
| Connector Serries | M12 |
| Gender | Female |
| Locking type | Fix screw |
| Mounting type | Straight / Right angled |
| Standard | IEC 61076-2-109 |
| Ambient temperature | -20℃ ~ +80℃ |
| Connector overmold | TPE/ TPU |
| Connector insert | PA |
| Connector contacts | Brass with gold plated |
| Coupling nut/screw | Brass with nickel plated |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤ 5 mΩ |
| EMI Shielding | Shielded |
| IP rating: | IP 67 in locked condition |
| Locking Design: | Anti-Vibration |
| Transmission characteristic: | CAT 6A |
| Seal / O - ring: | FKM |
| Contacts | Coding | Rated current | Voltage | Wire gauge/size | Cable jacket | Wire insulation | Cable Sepc | Wiring list | Cable ending & length | |||
| A/C | D/C | AWG | mm² | |||||||||
| 08 pins |
| X-Coding | 0.5A | 48V | 60V | 24~27AWG | 0.14~0.25 | PUR / PVC | HDPE | CAT 6A | 1.WH/OR white/orange 2.OR orange 3.WH/GN white/green 4.GN green 5.WH/BN white/brown 6.BN brown 7.WH/BU white/blue 8.BU blue | Customized cable ending and length |
APTEK is focus on development and manufacturing in industrial cable connectors for more than 9 years.
