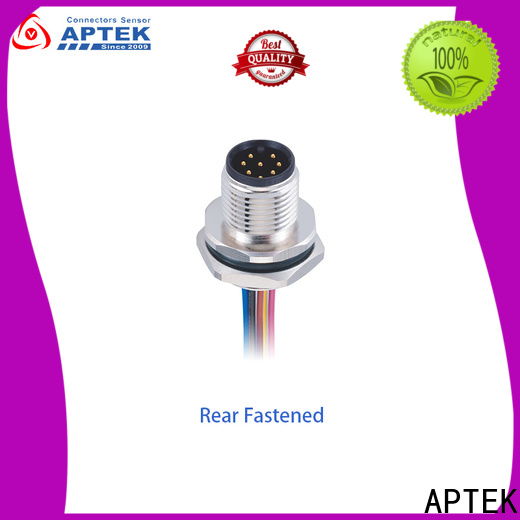

    APTEK molded m12 waterproof connector supply for industry
    APTEK molded m12 waterproof connector supply for industry

    APTEK molded m12 waterproof connector supply for industry

    APTEK molded m12 waterproof connector supply for industry

    Brand
    APTEK
    Connector Series
    M12
    Locking type
    Fix Screw
    Mounting type
    Straight
    Standard
    IEC 61076-2-101
    Coupling nut/screw
    Brass with nickel plated
    Locking Design
    Anti-Vibration
    Price
    Get Latest Price
    Inquire Online
    Get the latest price
    Quantity Needed：
    Pieces
    E-mail：

    M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.


    APTEK molded m12 waterproof connector supply for industry-1
    APTEK molded m12 waterproof connector supply for industry-2



    General Information


    Connector SerriesM12
    GenderMale
    Locking typeFix screw
    Mounting typeStraight angled
    StandardIEC 61076-2-101
    Ambient temperature-20℃ ~ +80℃
    Connector overmoldTPE/ TPU
    Connector insertPA
    Connector contactsBrass with gold plated
    Coupling nut/screwBrass with nickel plated
    Insulation resistance≥100 MΩ
    Contact resistance≤ 5 mΩ
    EMI Shielding Non-Shielded
    IP ratingIP 67 in locked condition
    Locking DesignAnti-Vibration
    Mounting ThreadM12, PG9 or M16


    Electrical data & Mechanical data


    ContactsAvailable Coding

    Wire

    Termination

    		Rated currentVoltageWire gauge/size

    Cable

     jacket

    		Wire insulationWiring listCable ending & length
    AB DA/CD/CAWGmm²
    03 pins

    APTEK molded m12 waterproof connector supply for industry-3

    APTEK molded m12 waterproof connector supply for industry-4



    Solder

    Version

    		4A250V250V24AWG0.34PUR / PVCPVC1.BN brown
    3.BU blue
    4.BK black    		Customized cable ending and length
    04 pins

    APTEK molded m12 waterproof connector supply for industry-5

    APTEK molded m12 waterproof connector supply for industry-6

    APTEK molded m12 waterproof connector supply for industry-7

    Solder

    Version

    		4A250V250V24AWG0.34PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    05 pins

    APTEK molded m12 waterproof connector supply for industry-8

    APTEK molded m12 waterproof connector supply for industry-9



    Solder

    Version

    		4A60V60V24AWG0.35PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    08 pins

    APTEK molded m12 waterproof connector supply for industry-10





    Solder

    Version

    		2A30V30V26AWG0.25PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    6.PK pink
    7.BU blue
    8.RD red
    12 pins

    APTEK molded m12 waterproof connector supply for industry-11





    Solder

    Version

    		1.5A30V30V26AWG0.14PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    6.PK pink
    7.BU blue
    8.RD red
    9.VT violet
    10.NV navy
    11.OR orange
    12.BK black
    17 pins

    APTEK molded m12 waterproof connector supply for industry-12





    Solder

    Version

    		1.5A30V30V26AWG0.14PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    6.PK pink
    7.BU blue
    8.RD red
    9.VT violet
    10.NV navy
    11.OR orange
    12.BK black
    13.WH/GN white/green
    14.WH/YE white/yellow
    15.WH/GY white/grey
    16.WH/RD white/red
    17.OR orange


    Level and performance



    APTEK m12 waterproof connector goes through comprehensive testing to ensure quality. These tests cover workmanship, safety, stability, strength, impacts, drops, and so forth. The whole surface of the product is nonconductive
    APTEK m12 waterproof connector is manufactured according to A-class standards stipulated by the state. It has passed quality tests including GB50222-95, GB18584-2001, and GB18580-2001. It can withstand the corrosion of acid, alkali, and other chemical substances
    APTEK m12 waterproof connector is professionally manufactured. It is carried out by expert developers with mechanical design automation and the ability to solve practical engineering problems. Aluminum alloy is applied to the product to prevent distortion
    APTEK m12 waterproof connector is of innovative design. Its creation uses the latest design concepts and adopting advanced computer-assisted methods. Its accessories, imported from Japan, Germany, Japan, are reliable and high-precision
    The design of APTEK m12 din connector is finished with high quality. It gives consideration to the contrast and consistency of dimension and the contrast and consistency of direction that aims to achieve rich change in spatial organization. Adopting high-quality imported stainless steel, it has a long service life
    The industrial application result shows that m12 din connector can realize the characteristics of m12 din connector. The "one-button" design provides easy use for users
    Product Message

    APTEK is focus on development and manufacturing in industrial cable connectors for more than 9 years.
