The series of M5 circular connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

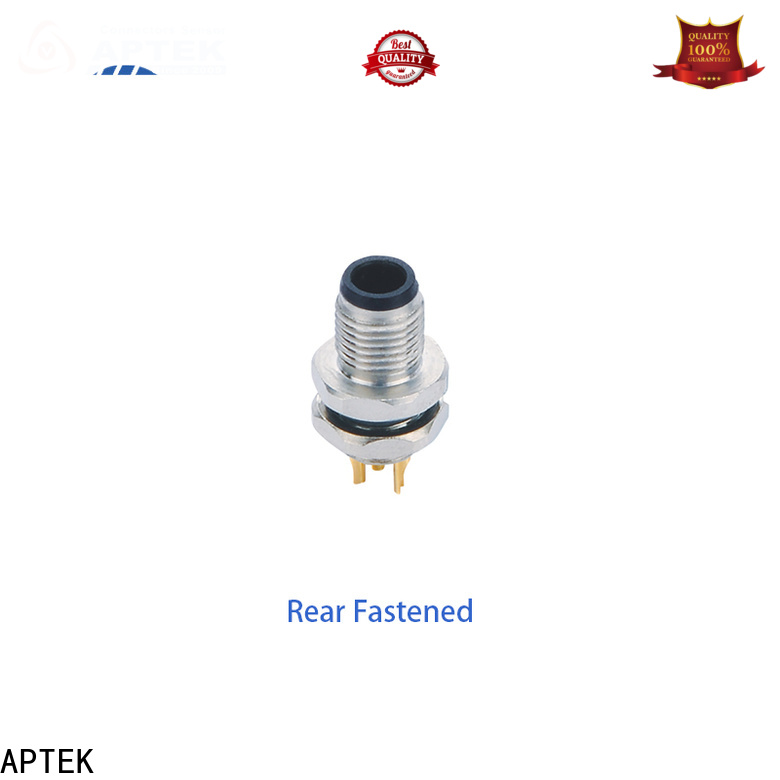

APTEK mount connector m5 suppliers for packaging machine-1

APTEK mount connector m5 suppliers for packaging machine-2

General Information

Connector Serries	M5
Gender	Male
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-105
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Wire termination	Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	Coding	Wire termination	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins	A-Coding	Solder Version	1A	60V	60V	26AWG	0.14	PVC	Customized cable ending and length
04 pins	A-Coding	Solder Version	1A	60V	60V	26AWG	0.14	PVC	Customized cable ending and length

Level and performance

w******x

The quality of APTEK m5 female cable connector is guaranteed. It has passed a comprehensive range of quality control processes such as the detection of hazardous substances in fabrics. It can work continuously for more than 12 hours

j******o

APTEK connector m5 has passed a variety of tests. They include flammability and fire resistance testing, as well as chemical testing for lead content in surface coatings. The unique split structure allows it easy to be transported and installed

x******e

APTEK m5 female cable connector has gone through a series of production processes. They involve CAD/CAM design, prototyping, milling, turning, welding, painting, and commissioning. The product is built with overcharge and over-discharge protection to prolong the lifespan of the battery

q******p

The quality of APTEK connector m5 is ensured. We use textile fibers that are derived from suppliers that provide quality textile for many years. It achieves the most efficient use of resources combining time and intelligent control schemes

x******l

APTEK m5 female cable connector meets international furniture standards. It has passed ANSI/BIFMA X7.1 Standard for Formaldehyde and TVOC Emissions, ANSI/BIFMA e3 Furniture Sustainability Standard, etc. It has an automatic charge and discharge management function

x******t

Characterized by its reasonable price, our m5 female cable connector is also famous for its m5 female cable connector. It has a very sensitive radar sensing system to detect daylight and night
