Junction Box provides more extension possiblity to industrial field control. The distribution boxes are available in 4, 6, 8 or 12 ports with either 4 or 5 poles per port. Ther master cable can be configured iva a M23 connector or pre-molded cable on the junction box.

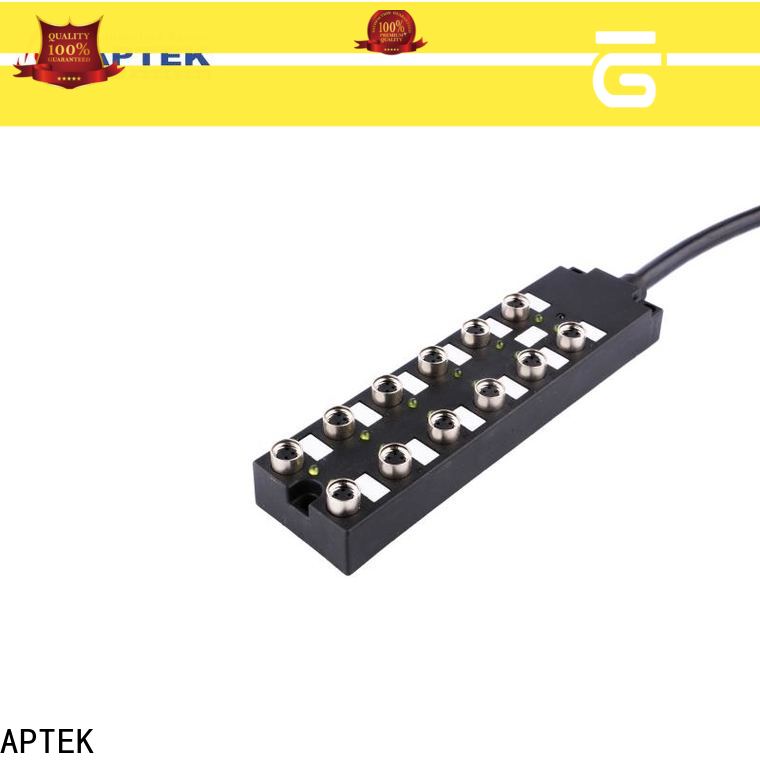

APTEK New cable junction box supply for industrial protocols-1

General Information

Connector Serries	Junction Box
Ports	12
Locking type	Fix screw
Mounting type	Straight
LED Colour	Yellow
Ambient temperature	-40℃ ~ +80℃ Fix Installation
Material of body	PBT
Connector insert	TPU
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Body Colour	Black or Yellow
Contact resistance	≤ 5 mΩ
Rated Voltage with/without LED	10~30V/120V
Rated current	2A per signal, 6A total
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Cable ending & length
			A/C	D/C	AWG	mm²
03 pins	A-Coding	2A；6A	120V	120V	22~24	0.5~0.25	PUR / PVC	Customized cable ending and length

Level and performance

v******l

Each step is strictly monitored by the professional quality inspection department. A continuous inspection system is implemented to ensure the high quality of this product. It generates only little magnetic interference

h******u

The adoption of advanced equipment and the lean production method make APTEK cable connector block more cost-effective. This product stands out for its high sensitivity

t******f

The source of raw materials: before APTEK cable connector block comes out, it is processed from high quality raw materials. These materials are sourced from several different places within and out of the region. This product has a wide range of operating temperatures

j******w

APTEK cable junction box is manufactured with accuracy in specifications. Since it is maintenance-free, this product significantly helps save operation costs

j******h

Strong designer team: APTEK cable junction box is designed by our design team who are powerful with professional design knowledge. They are also well-trained to put forward design concept and complete the design in a short time. This product can be used in many different industries such as food & beverage, water, energy, pharmaceutical, etc

s******x

It has a low fabric shrinkage rate. The fabric has been treated under steam or atomizing, extruded by machine, and dried, which makes the shrinkage rate drop to 1% or lower. This product is notable for its strong overload capacity
