1. In the course of excellent quality of circular cable connectors , our price-quality ratio is quite reasonable. APTEK is a focus on industrial connectors for nearly 10 years
2. Zhongshan Aptek Electronics Technology Co.,Ltd will highly recommend circular cable connectors as we believe of its exhibited features like m5 emi shield cable connector . APTEK has a wide range of metric circular connectors and cable assembly that fit almost all standards
3. The product is strictly checked by the quality inspection department. From the raw material to the shipment process, the defective product is not allowed to enter the market. Efficient response to all instructions from customers is a mission of APTEK

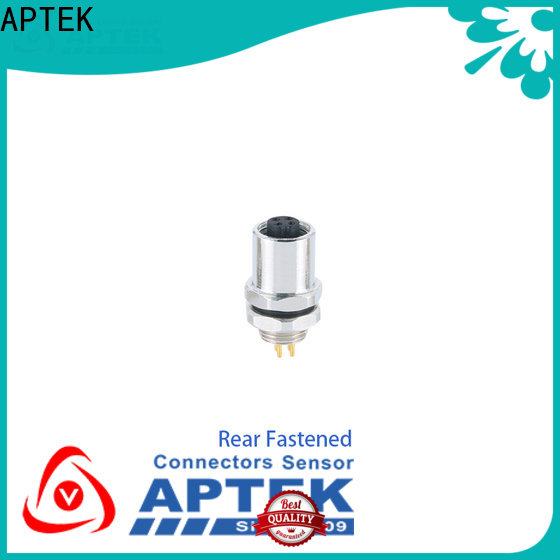

The series of M5 circular connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

APTEK New circular cable connectors suppliers for packaging machine-1

APTEK New circular cable connectors suppliers for packaging machine-2

General Information

Connector Serries	M5
Gender	Female
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-105
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Wire termination	Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	Coding	Wire termination	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins	A-Coding	PCB Version	1A	60V	60V	26AWG	0.14	PVC	Customized cable ending and length
04 pins	A-Coding	PCB Version	1A	60V	60V	26AWG	0.14	PVC	Customized cable ending and length
