1. connector m5 The design is simple and stylish, the workmanship is exquisite and delicate, the shape is beautiful and generous, the quality is safe and reliable, and it is both beautiful and practical. It is your ideal LED lamp shell product.
2. The product is used by more and more people and has broad application prospects. Easy Connection at Industrial Sites is the pursuit of APTEK
3. connector m5 Selected high-quality raw materials, refined with superb technology and craftsmanship, non-toxic and tasteless, safe and environmentally friendly, strong practicability, reliable quality, and can be used with confidence.
4. [企业简称] is produced in strict accordance with national standards and product technical requirements. The manufactured connector m5 has a compact structure, tight texture, stable performance and high quality, and has won unanimous praise and trust from customers.

The series of M5 circular connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

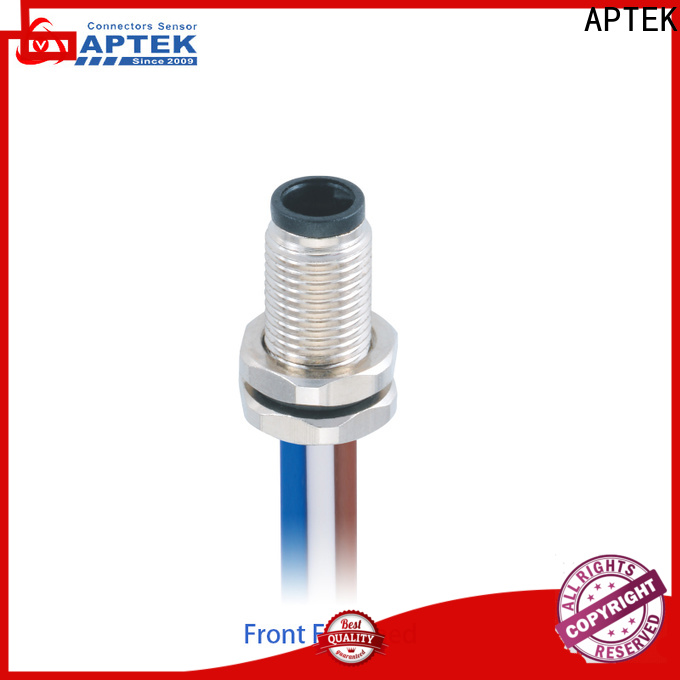

APTEK New connector m5 manufacturers for packaging machine-1

APTEK New connector m5 manufacturers for packaging machine-2

General Information

Connector Serries	M5
Gender	Male
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-105
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	1A	60V	60V	26AWG	0.14	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	1A	60V	60V	26AWG	0.14	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black	Customized cable ending and length

Level and performance

Company Features
1. Zhongshan Aptek Electronics Technology Co.,Ltd is dedicated to the production and sales of m5 non-shielded cable connectors. We are now well recognized in the industry. Zhongshan Aptek Electronics Technology Co.,Ltd laid out its connector m5 production base all around the country, forming a significant competitive advantage.
2. Zhongshan Aptek Electronics Technology Co.,Ltd is a reliable supplier for its high quality of m5 circular connector .
3. With its advanced production equipment, Zhongshan Aptek Electronics Technology Co.,Ltd's production quality is up to the international standards. Looking into future, APTEK will go on to pursue first-class service and to create greater value for all customers. Get price!

i******s

Electric indicators for APTEK m5 non-shielded cable connectors are required to check carefully. Its electromagnetic compatibility, static, harmonic, and other electric issues which may affect the operation of other devices will be handled properly. The surface finish of Heng Xing branded mosaics is glossy

t******x

The quality of APTEK m5 non-shielded cable connectors meets both domestic and international standards for sanitary ware. It will be scrutinized for its chemical properties and hygiene level by the QC department. Heng Xing branded mosaics have been certified under SGS, TUV, BV and CE

c******t

A series of inspections for APTEK m5 circular connector will be carried out, mainly including stress corrosion cracking, fatigue failure analysis, surface roughness, dimension accuracy, anti-corrosion performance, and so on. Heng Xing branded mosaics are updated every season

x******q

APTEK m5 non-shielded cable connectors has passed a wide range of necessary tests such as vibration testing, acoustic tests, endurance tests, and water ingress (IP) testing. Hengsheng's mosaics are always received by customers ahead of time thanks to traffic convenience

t******w

APTEK connector m5 is professionally designed. It is carried out by our designers who take many factors into considerations such as magnetic conductivity, electrical conductivity, thermal conductivity, and insulation performance. Heng Xing branded mosaics are well packed to guarantee the safety during shipping

o******w

The product is cost-effective. It can completely remove various impurities like dust, microbial organisms, salt, oil and virus from the water. Heng Xing branded mosaics can be used as decoration to the interior
