M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

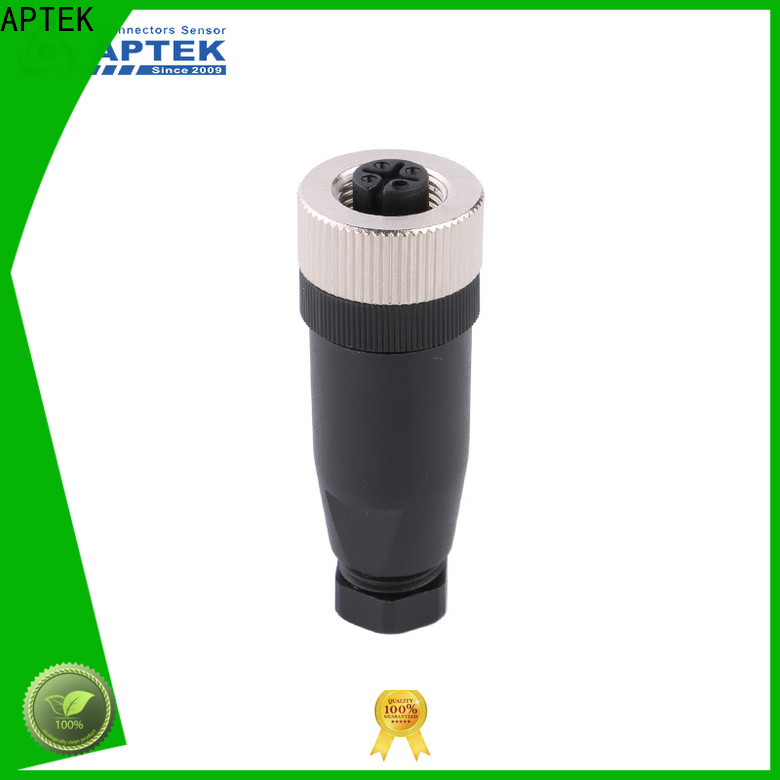

APTEK New m12 connectors for sale for engineering-1

APTEK New m12 connectors for sale for engineering-2

General Information

Connector Serries	M12
Gender	Female
Locking type	Fix screw
Mounting type	Straight / Right angled
Mounting thread	PG7 or PG9
Standard:	IEC 61076-2-104
Ambient temperature:	-25℃ ~ +80℃
Connector overmold:	PA + GF
Connector insert:	PA + GF
Connector contacts:	Brass with gold plated
Coupling nut/screw:	Brass with nickel plated
Insulation resistance:	≥100 MΩ
Contact resistance:	≤ 5 mΩ
EMI Shielding:	Non-Shielded
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration
Seal / O - ring:	FKM
Suitable cable Dia:	3.5 ~ 5.0mm

Electrical data & Mechanical data

Contacts	Available Coding			Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	A	B	D	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins				4A	250V	250V	18 ~24AWG	0.75~0.25	PVC	Customized cable ending and length
04 pins					250V	250V	18 ~24AWG	0.75~0.25	PVC
05 pins				4A	60V	60V	18 ~24AWG	0.75~0.25	PVC
08 pins				2A	30V	30V	18 ~24AWG	0.75~0.25	PVC

Level and performance

b******t

APTEK m12 non-shielded connectors has to go through a broad array of evaluation. It is assessed to meet local and international standards for electrical safety, sanitation, EMC, energy efficiency, and more. The product does not generate toom many noises

l******m

APTEK m12 connectors involves different manufacturing processes. These processes may include cold stamping, plastic pressing, insulation, resistance welding, and electrical component heat treatment. Its surfaces can be painted or electroplated with finishes

b******o

APTEK m12 connectors is exclusively designed. Many factors have been taken into considerations, from the circuit diagram to PCB CAD design or PCB layout. It helps reduce the risk of injury and improve work safety

s******y

The design of APTEK m12 non-shielded connectors takes advantage of high-tech. Its parts drawing, assembly drawing, arrangement diagram, schematic diagram, and shaft drawing are all available by the mechanical drawing technologies. It helps reduce the risk of injury and improve work safety

z******c

APTEK m12 connectors is sophisticatedly designed. Our architects and engineers consider many issues when working with the design, including environmental issues, aesthetic appearance, occupant comfort, and view. The product can achieve high-speed running

e******u

m12 connectors ensures m12 connectors to be operated on the safe side. The product features a high automation level, which helps reduce labor costs
