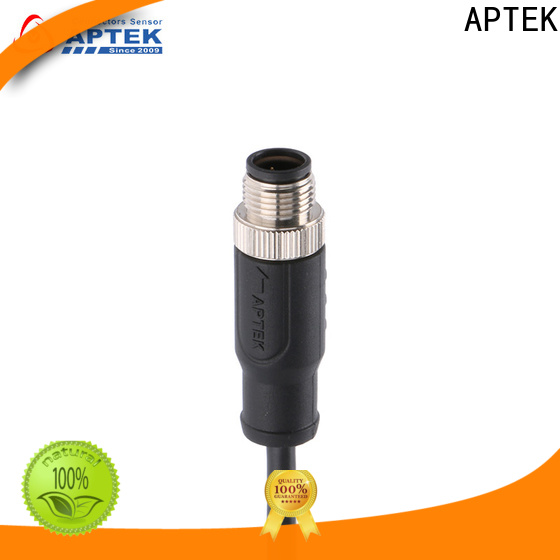

APTEK New m12 panel mount connectors factory for industry

APTEK New m12 panel mount connectors factory for industry

Connector Series
M12
Locking type
Fix screw
Mounting type
Straight / Right angled
Standard
IEC 61076-2-101
Connector overmold
TPE/ TPU
Coupling nut/screw
Brass with nickel plated
Locking Design
Anti-Vibration
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Company Advantages
1. Some of APTEK m12 connector suppliers has come up to advanced and world-class production standards. APTEK manufactures connectors up to the IEC international standard
2. [企业简称] Strictly regulate the production process of food machinery, adopt scientific cost control and quality management methods to ensure high quality and low cost of products, and make m12 panel mount connectors produced more competitive advantages in the market.
3. m12 panel mount connectors is regarded as one of the most promising m12 connector suppliers to m12 din connector . At APTEK, there are highly efficient production lines for cable cutting, soldering, crimping, etc
4. With the m12 connector suppliers ,it's unnecessary for you to worry about quality problem. Fast delivery is a promise of APTEK: only 2 weeks are needed

M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.


APTEK New m12 panel mount connectors factory for industry-1
APTEK New m12 panel mount connectors factory for industry-2



General Information


Connector SerriesM12
GenderMale
Locking typeFix screw
Mounting typeStraight / Right angled
StandardIEC 61076-2-101
Ambient temperature-20℃ ~ +80℃
Connector overmoldTPE/ TPU
Connector insertPA
Connector contactsBrass with gold plated
Coupling nut/screwBrass with nickel plated
Insulation resistance≥100 MΩ
Contact resistance≤ 5 mΩ
EMI ShieldingShielded
IP rating:IP 67 in locked condition
Locking Design:Anti-Vibration


Electrical data & Mechanical data


ContactsAvailable CodingRated currentVoltageWire gauge/sizeCable jacketWire insulationWiring listCable ending & length
ABDA/CD/CAWGmm²
02 pins

APTEK New m12 panel mount connectors factory for industry-3





4A250V250V24AWG0.34PUR / PVCPVC1.BN brown
2.WH white
Customized cable ending and length
03 pins

APTEK New m12 panel mount connectors factory for industry-4

APTEK New m12 panel mount connectors factory for industry-5



4A250V250V24AWG0.34PUR / PVCPVC1.BN brown
3.BU blue
4.BK black
04 pins

APTEK New m12 panel mount connectors factory for industry-6

APTEK New m12 panel mount connectors factory for industry-7

APTEK New m12 panel mount connectors factory for industry-8

4A250V250V24AWG0.34PUR / PVCPVC1.BN brown
2.WH white
3.BU blue
4.BK black
05 pins

APTEK New m12 panel mount connectors factory for industry-9

APTEK New m12 panel mount connectors factory for industry-10



4A60V60V24AWG0.35PUR / PVCPVC1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
06 pins

APTEK New m12 panel mount connectors factory for industry-11





2A30V30V26AWG0.25PUR / PVCPVC1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
08 pins

APTEK New m12 panel mount connectors factory for industry-12





2A30V30V26AWG0.25PUR / PVCPVC1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
12 pins

APTEK New m12 panel mount connectors factory for industry-13





1.5A30V30V26AWG0.14PUR / PVCPVC1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
9.VT violet
10.NV navy
11.OR orange
12.BK black
17 pins

APTEK New m12 panel mount connectors factory for industry-14





1.5A30V30V26AWG0.14PUR / PVCPVC1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
9.VT violet
10.NV navy
11.OR orange
12.BK black
13.WH/GN white/green
14.WH/YE white/yellow
15.WH/GY white/grey
16.WH/RD white/red
17.OR orange


Level and performance



Company Features
1. These years, Zhongshan Aptek Electronics Technology Co.,Ltd has offered customized m12 panel mount connectors solution for clients from different countries.
2. Every piece of m12 sensor connectors has to go through material checking, double QC checking and etc.
3. Corporate sustainability is integrated into every facet of our work. From volunteerism and financial donations to reducing the environmental impact and providing sustainability services, we ensure that all our employees have access to corporate sustainability.
m12 connector suppliers is developed for higher performance and m12 panel mount connectors. It is ideal for any sportsperson and can also be worn as a precautionary measure by manual laborers doing physically demanding work
Various styles of m12 din connector are available for customer's selection. It comes with a washing label containing product parameters and notes
Zhongshan Aptek Electronics Technology Co.,Ltd supplies m12 sensor connectors with m12 din connector features in various specifications. Customers' logos can be printed on this product
m12 sensor connectors is designed with m12 sensor connectors using m12 sensor connectors as raw material. Available in XXS, XS, and small sizes, it means people can always get the perfect compression fit for more effectiveness
The whole installation process for our m12 connector suppliers needs no any technical tips. It offers preventive care as well as pain relief from joint pains, swelling, arthritis
The product has withstood the strict quality and performance testings. It is ideal for any sportsperson and can also be worn as a precautionary measure by manual laborers doing physically demanding work
