M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

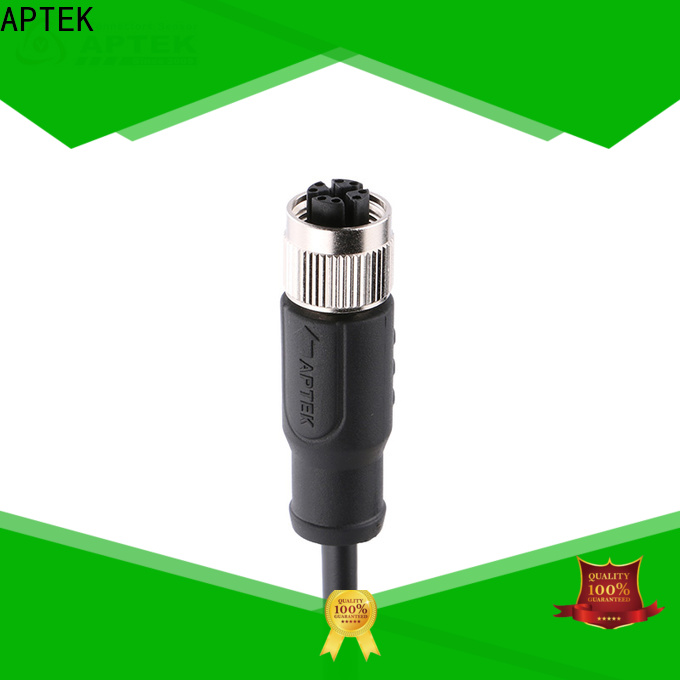

APTEK screw m12 cable connector suppliers for packaging machine-1

APTEK screw m12 cable connector suppliers for packaging machine-2

General Information

Connector Serries	M12
Gender	Female
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-109
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Shielded
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration
Transmission characteristic:	CAT 6A
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts

Coding

Rated current

Voltage

Wire gauge/size

Cable jacket

Wire insulation

Cable Sepc

Wiring list

Cable ending & length

A/C

D/C

AWG

mm²

08 pins

APTEK screw m12 cable connector suppliers for packaging machine-3

X-Coding

0.5A

48V

60V

24~27AWG

0.14~0.25

PUR / PVC

HDPE

CAT 6A

1.WH/OR white/orange
2.OR orange
3.WH/GN white/green
4.GN green
5.WH/BN white/brown
6.BN brown
7.WH/BU white/blue
8.BU blue

Customized cable ending and length

Level and performance

e******s

There are many important parameters being considered in APTEK m12 4 pin connector cable design. They are strength, stiffness or rigidity, wear resistance, lubrication, ease of assembly, etc. It has been certified under REACH and RoHS

h******y

APTEK m12 4 pin connector cable is meticulously produced. Its manufacturing processes include areas such as computerized machine control, engineering statistics, ergonomics, and life cycle analysis. It produces no strident squeak when used

z******a

APTEK m12 cable connector is required to go through a range of tests. It has passed the tests such as drop or shock testing, hardness testing, mechanical properties, and mechanism cycling movement endurance. It will bond instantly as soon as people apply it and add pressure to it, saving the time waiting for the adhesive to cure

j******b

APTEK m12 4 pin connector cable is designed with a range of protection systems. It is built with overpressure, overload, electric circuits, and loss of voltage protection. It has the advantage of good breaking strength

h******o

The design of APTEK m12 4 pin connector cable follows the many basic principles. They are mainly mechanical properties, static and dynamic structure, safety, cycle time and so on. It is not likely to tear paint off the base materials

o******z

The product is tested again and again ensuring long service life. It has been certified under REACH and RoHS
