Product Information
Feedback

M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

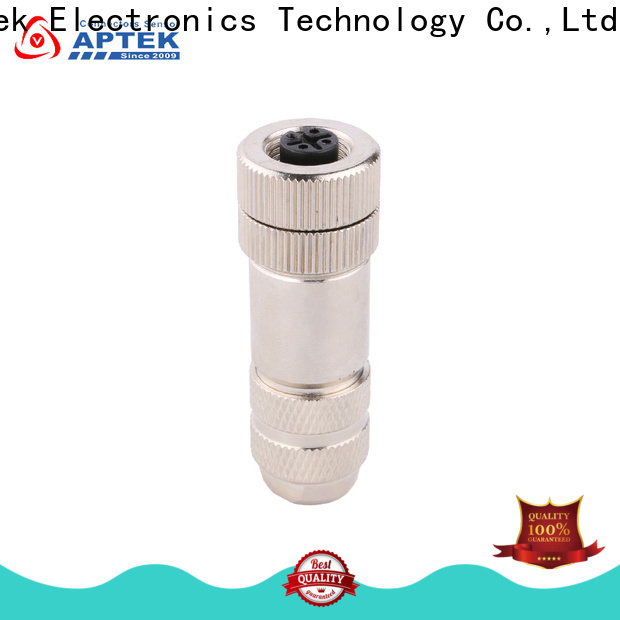

APTEK solder m12 panel mount connectors for business for packaging machine-1

General Information

Connector Serries	M12
Gender	Female
Locking type	Fix screw
Mounting type	Straight
Mounting thread	PG7 or PG9
Standard:	IEC 61076-2-101
Ambient temperature:	-25℃ ~ +80℃
Connector body:	Zinc alloy with nickel plated
Connector insert:	PA + GF
Connector contacts:	Brass with gold plated
Coupling nut/screw:	Brass with nickel plated
Insulation resistance:	≥100 MΩ
Contact resistance:	≤ 5 mΩ
EMI Shielding:	Shielded
Suitable cable Dia:	6.0 ~ 8.0mm
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration

Electrical data & Mechanical data

Contacts	Available Coding			Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	A	B	D	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins				4A	250V	250V	18 ~26AWG	0.75~0.14	PVC	Customized cable ending and length
04 pins				4A	250V	250V	18 ~26AWG	0.75~0.14	PVC
05 pins				4A	60V	60V	18 ~26AWG	0.75~0.14	PVC
08 pins				2A	30V	30V	18 ~26AWG	0.75~0.14	PVC

Level and performance

j******o

Each step is strictly monitored by the professional quality inspection department. A continuous inspection system is implemented to ensure the high quality of this product. Its shape can be customized according to needs

p******e

The adoption of advanced equipment and the lean production method make APTEK m12 panel mount connectors more cost-effective. It is able to quickly and effectively detect and respond to some types of input

d******h

The source of raw materials: before APTEK m12 molded cable connectors comes out, it is processed from high quality raw materials. These materials are sourced from several different places within and out of the region. Its power ratings can be customized e based on requests

o******d

APTEK m12 panel mount connectors is manufactured with accuracy in specifications. This product is not susceptible to cracks

j******g

Strong designer team: APTEK m12 panel mount connectors is designed by our design team who are powerful with professional design knowledge. They are also well-trained to put forward design concept and complete the design in a short time. This product has the feature of explosion-proof

x******v

It has a low fabric shrinkage rate. The fabric has been treated under steam or atomizing, extruded by machine, and dried, which makes the shrinkage rate drop to 1% or lower. This product is mainly used for the automation process
