Top circular cable connectors m5 suppliers for engineering

Latest products

M12 Circular Connector to USB2.0 Connector Molded with Cable

M8 Circular Connector to USB2.0 Connector Molded with Cable

Ethernet Patch Cables, double ended RJ45 8P8C male plug with locking screw on one end

Ethernet Patch Cables, double ended RJ45 8P8C male plug

Product Information
Feedback

The series of M5 circular connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

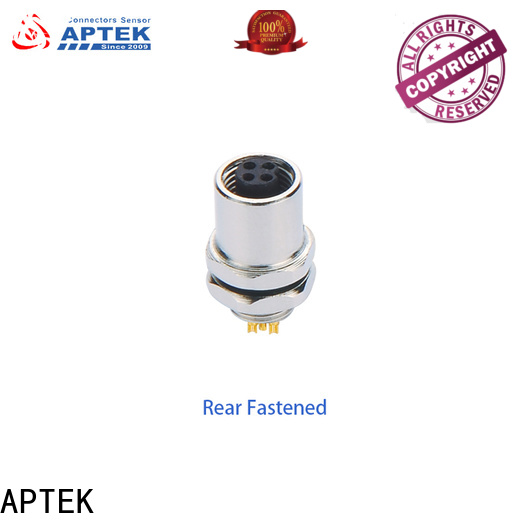

APTEK Top circular cable connectors suppliers for engineering-1

APTEK Top circular cable connectors suppliers for engineering-2

General Information

Connector Serries	M5
Gender	Female
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-105
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Wire termination	Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	Coding	Wire termination	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins	A-Coding	Solder Version	1A	60V	60V	26AWG	0.14	PVC	Customized cable ending and length
04 pins	A-Coding	Solder Version	1A	60V	60V	26AWG	0.14	PVC	Customized cable ending and length

Level and performance

k******t

APTEK circular cable connectors has to go through a broad array of evaluation. It is assessed to meet local and international standards for electrical safety, sanitation, EMC, energy efficiency, and more. The product is highly anti-interference to exterior elements

w******k

APTEK m5 emi shield cable connector involves different manufacturing processes. These processes may include cold stamping, plastic pressing, insulation, resistance welding, and electrical component heat treatment. The product can achieve high-speed running

e******u

APTEK circular cable connectors is exclusively designed. Many factors have been taken into considerations, from the circuit diagram to PCB CAD design or PCB layout. With high flexibility, it meets the demand of the production lines

r******b

The design of APTEK circular cable connectors takes advantage of high-tech. Its parts drawing, assembly drawing, arrangement diagram, schematic diagram, and shaft drawing are all available by the mechanical drawing technologies. With sensors to detect the position in real-time, it guarantees high precision

h******t

APTEK m5 emi shield cable connector is sophisticatedly designed. Our architects and engineers consider many issues when working with the design, including environmental issues, aesthetic appearance, occupant comfort, and view. The product is best known for dynamic response characteristics

h******l

circular cable connectors ensures circular cable connectors to be operated on the safe side. With high flexibility, it meets the demand of the production lines
