APTEK Top circular connectors factory for packaging machine

APTEK Top circular connectors factory for packaging machine

Connector Series
M5
Locking type
Fix screw
Mounting type
Straight / Right angled
Standard
IEC 61076-2-105
Connector overmold
TPE/ TPU
Coupling nut/screw
Brass with nickel plated
Locking Design
Anti-Vibration
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

The series of M5 circle connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

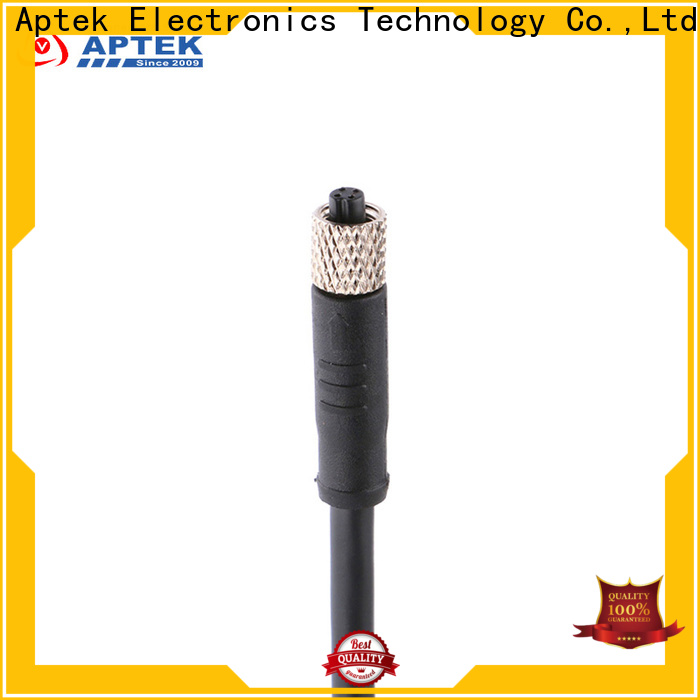

APTEK Top circular connectors factory for packaging machine-1
APTEK Top circular connectors factory for packaging machine-2



General Information


Connector SerriesM5
Genderfemale
Locking typeFix screw
Mounting typeStraight / Right angled
StandardIEC 61076-2-105
Ambient temperature-20℃ ~ +80℃
Connector overmoldTPE/ TPU
Connector insertPA
Connector contactsBrass with gold plated
Coupling nut/screwBrass with nickel plated
Insulation resistance≥100 MΩ
Contact resistance≤ 5 mΩ
EMI ShieldingShielded
IP ratingIP 67 in locked condition
Locking DesignAnti-Vibration
Seal / O - ring:FKM


Electrical data & Mechanical data


ContactsCodingRated currentVoltageWire gauge/sizeCable jacketWire insulationWiring listCable ending & length
A/CD/CAWGmm²
03 pins

APTEK Top circular connectors factory for packaging machine-3

A-Coding1A60V

60V

26AWG0.14PUR / PVCPVC1.BN brown
3.BU blue
4.BK black
Customized cable ending and length
04 pins

APTEK Top circular connectors factory for packaging machine-4

A-Coding1A60V60V26AWG0.14PUR / PVCPVC1.BN brown
2.WH white
3.BU blue
4.BK black


Level and performance



We have a complete procurement chain and quality control system, insist on selecting high-quality raw materials to produce circular connectors, and strictly control every link of circular connectors production, and comprehensively control product quality, so that all circular connectors have superior quality quality.
m5 female connector Produce in strict accordance with the standards stipulated by the company and the requirements of the market to ensure that it can pass the inspection of relevant state departments and meet the national quality standards. It is a high-quality product with guaranteed quality.
Zhongshan Aptek Electronics Technology Co.,Ltd Through strict selection and supervision of raw material supply channels, the source is well controlled, and then circular connectors is produced and processed relying on its own advanced equipment, mature technology and technology, and strict procedures and processes are carried out for each step Control, control the core of production, and finally conduct a detailed inspection of each finished product in accordance with the relevant international quality standard system to ensure that every product produced is a top-quality product with excellent quality .
circular connectors of Zhongshan Aptek Electronics Technology Co.,Ltd is made of selected high-quality materials, and the overall design is scientific and reasonable, the finished product is of good quality, and has a high market value.
Zhongshan Aptek Electronics Technology Co.,Ltd has been operating in good faith for many years, and has accumulated rich industry experience in product development and manufacturing. The m5 female connector produced can meet the national CCC certification standards in terms of quality and performance.
It will undergo strict tests for quality before loading. Efficient response to all instructions from customers is a mission of APTEK
