M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

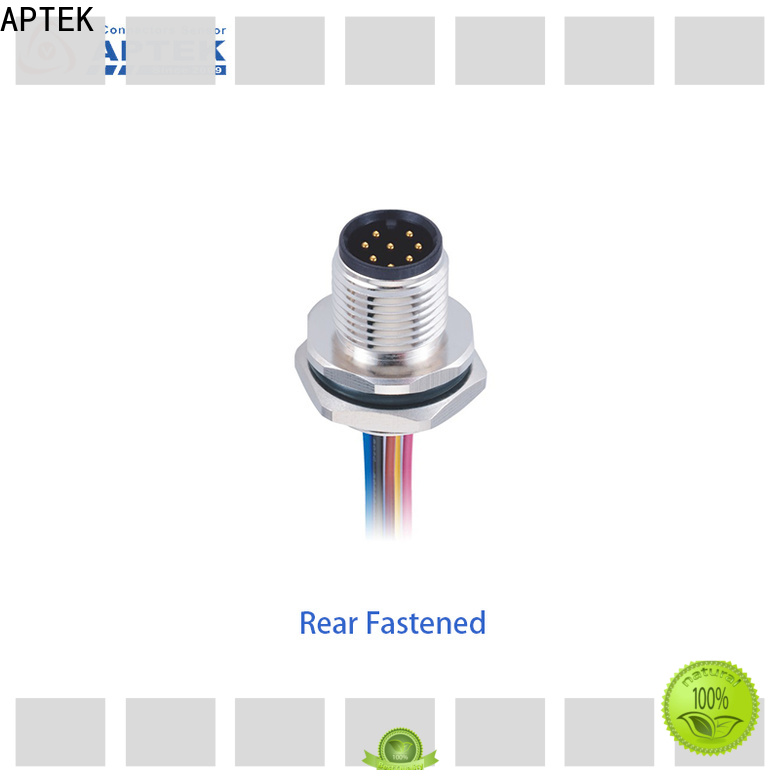

APTEK waterproof m12 x coded connector manufacturers for industry-1

APTEK waterproof m12 x coded connector manufacturers for industry-2

General Information

Connector Serries	M12
Gender	Male
Locking type	Fix screw
Mounting type	Straight angled
Standard	IEC 61076-2-101
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Mounting Thread	M12, PG9 or M16

Electrical data & Mechanical data

Contacts

Available Coding

Wire

Termination

Rated current

Voltage

Wire gauge/size

Cable

jacket

Wire insulation

Wiring list

Cable ending & length

A/C

D/C

AWG

mm²

03 pins

APTEK waterproof m12 x coded connector manufacturers for industry-3

APTEK waterproof m12 x coded connector manufacturers for industry-4

Solder

Version

250V

24AWG

0.34

PUR / PVC

PVC

1.BN brown
3.BU blue
4.BK black

Customized cable ending and length

04 pins

APTEK waterproof m12 x coded connector manufacturers for industry-6

Solder

Version

250V

24AWG

0.34

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black

05 pins

APTEK waterproof m12 x coded connector manufacturers for industry-8

APTEK waterproof m12 x coded connector manufacturers for industry-9

Solder

Version

60V

24AWG

0.35

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey

08 pins

APTEK waterproof m12 x coded connector manufacturers for industry-10

Solder

Version

30V

26AWG

0.25

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red

12 pins

APTEK waterproof m12 x coded connector manufacturers for industry-11

Solder

Version

1.5A

30V

26AWG

0.14

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
9.VT violet
10.NV navy
11.OR orange
12.BK black

17 pins

APTEK waterproof m12 x coded connector manufacturers for industry-12

Solder

Version

1.5A

30V

26AWG

0.14

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
9.VT violet
10.NV navy
11.OR orange
12.BK black
13.WH/GN white/green
14.WH/YE white/yellow
15.WH/GY white/grey
16.WH/RD white/red
17.OR orange
