M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

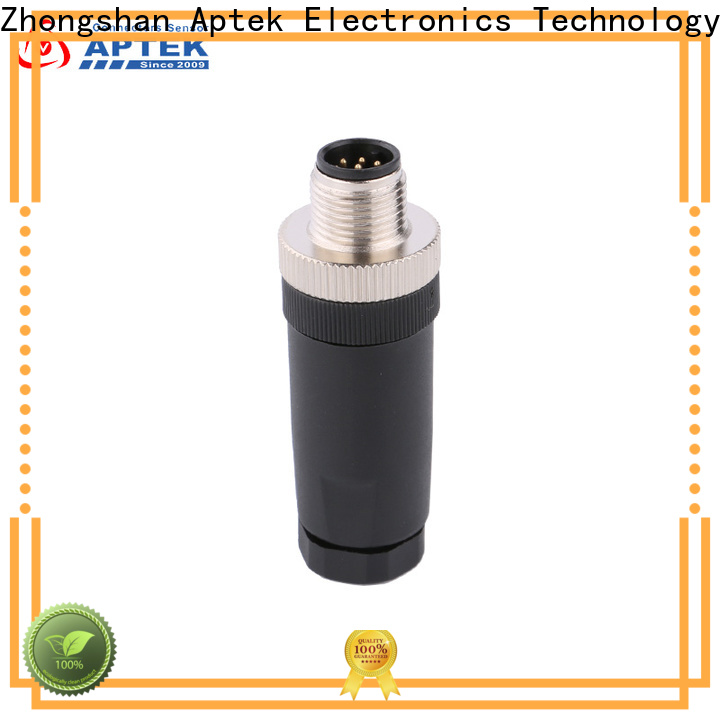

APTEK waterproof m12 x coded connector supply for industry-1

APTEK waterproof m12 x coded connector supply for industry-2

Dimensions

APTEK waterproof m12 x coded connector supply for industry-3

APTEK waterproof m12 x coded connector supply for industry-4

General Information

Connector Serries	M12
Gender	Male
Locking type	Fix screw
Mounting type	Straight / Right angled
Mounting thread	PG7 or PG9
Standard:	IEC 61076-2-101
Ambient temperature:	-25℃ ~ +80℃
Connector overmold:	PA + GF
Connector insert:	PA + GF
Connector contacts:	Brass with gold plated
Coupling nut/screw:	Brass with nickel plated
Insulation resistance:	≥100 MΩ
Contact resistance:	≤ 5 mΩ
EMI Shielding:	Shielded
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration

Electrical data & Mechanical data

Contacts	Available Coding			Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	A	B	D	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins				4A	250V	250V	18 ~24AWG	0.75~0.25	PVC	Customized cable ending and length
04 pins				4A	250V	250V	18 ~24AWG	0.75~0.25	PVC
05 pins				4A	60V	60V	18 ~24AWG	0.75~0.25	PVC
08 pins				4A	30V	30V	18 ~24AWG	0.75~0.25	PVC

Level and performance

v******i

Strict production standard: the production of APTEK m12 x coded connector follows strict production standards that comply with the international ones and meet the requirements of customers. It allows company owners to compact a lot of information in a small area

c******z

The raw materials of APTEK m12 4 pin female connector are paid 100% attention during selecting. The defective raw materials are all eliminated before entering the factory and thus they are of high performance. The product effectively displays promotional messages for items

l******d

APTEK m12 4 pin female connector is created a unique on a scientific and reasonable basis. The product is printed using non-toxic and harmless raw materials

m******p

The raw materials of APTEK m12 x coded connector are of high quality. It is sourced from top grade suppliers whose materials are in line with the quality standards. It does not easily get mildewed in the rainy season

l******w

APTEK m12 x coded connector adopts the humanization design. The colorful and high-resolution graphics can be printed on this product

i******s

This product features the desired durability. It can endure daily pressure or resist the damage of fingernails and sharp objects. Its color is vivid and also flexibly customizable
