Junction Box provides more extension possiblity to industrial field control. The distribution boxes are available in 4, 6, 8 or 12 ports with either 4 or 5 poles per port. Ther master cable can be configured iva a M23 connector or pre-molded cable on the junction box.

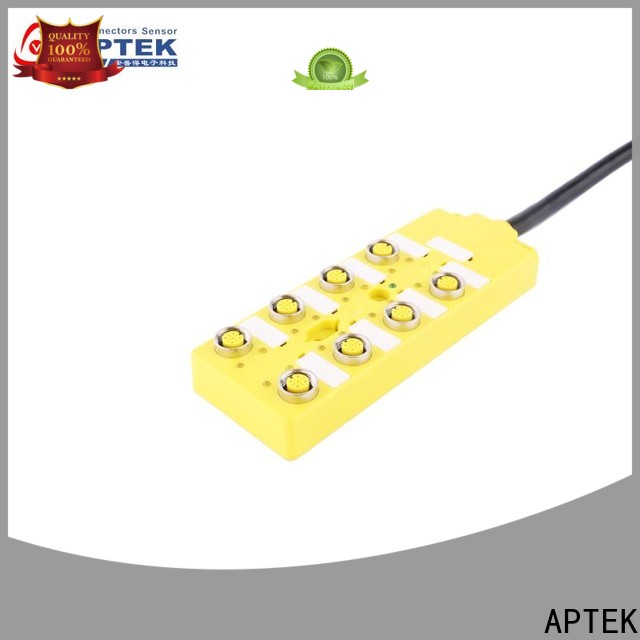

APTEK Wholesale cable distribution box for sale for industrial protocols-1

General Information

Connector Serries	Junction Box
Ports	8
Locking type	Fix screw
Mounting type	Straight
LED Colour	Yellow
Ambient temperature	-40℃ ~ +80℃ Fix Installation
Material of body	PBT
Connector insert	TPU
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Body Colour	Black or Yellow
Contact resistance	≤ 5 mΩ
Rated Voltage with/without LED	10~30V/120V
Rated current	2A per signal, 9A total
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Cable ending & length
04 pins	A-Coding	2A；9A	120V	120V	18~22	0.75~0.34	PUR / PVC	Customized cable ending and length
05 pins	A-Coding	2A；9A	120V	120V	18~22	0.75~0.34	PUR / PVC	Customized cable ending and length

Level and performance

w******o

APTEK cable distribution box is manufactured strictly complying with relevant standards. It has been tested under IEC, JISC, RoHS, CE, etc, and the testing result shows that its electrical property and safety performance meet the regulations. Equipped with advanced machines, we can provide customized service for our products

k******f

APTEK m12 distribution box is of flexible design. It can be designed with different kinds of materials, battery shells, and functions to fit its using environments. Our products are well packaged and protected during transportation

y******m

APTEK cable distribution box is manufactured according to strict regulations. These regulations include the EU RoHS directives, REACH directives, CE, and MSDS. We provide one stop service of Design-Prototype-Injection mould

q******m

The electrolyte used in APTEK m12 distribution box is scrutinized. Any inferior electrolyte which easily volatilizes and leaks under high temperature is weeded out. PMMA material makes plastic products clear and transparent

h******f

The random inspection will be carried out on APTEK cable distribution box production. Its parameters and specifications will be strictly scrutinized based on the sample or part approved sheet, so as to make sure it meets the quality requirements in the battery industry. With its own superb technology and efficient service, Tuowei hand model is well accepted at home and abroad

k******x

Being qualified with cable distribution box makes cable distribution box consequent to be the fashion trend. We have professional QC team to strictly control quality of our products
