APTEK Wholesale m12 circular connector for sale for engineering

APTEK Wholesale m12 circular connector for sale for engineering

Connector Series
M12
Locking type
Fix screw
Mounting type
Straight / Right angled
Standard
IEC 61076-2-101
Connector overmold
Transparent PVC / TPU
Coupling nut/screw
Brass with nickel plated
Locking Design
Anti-Vibration
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

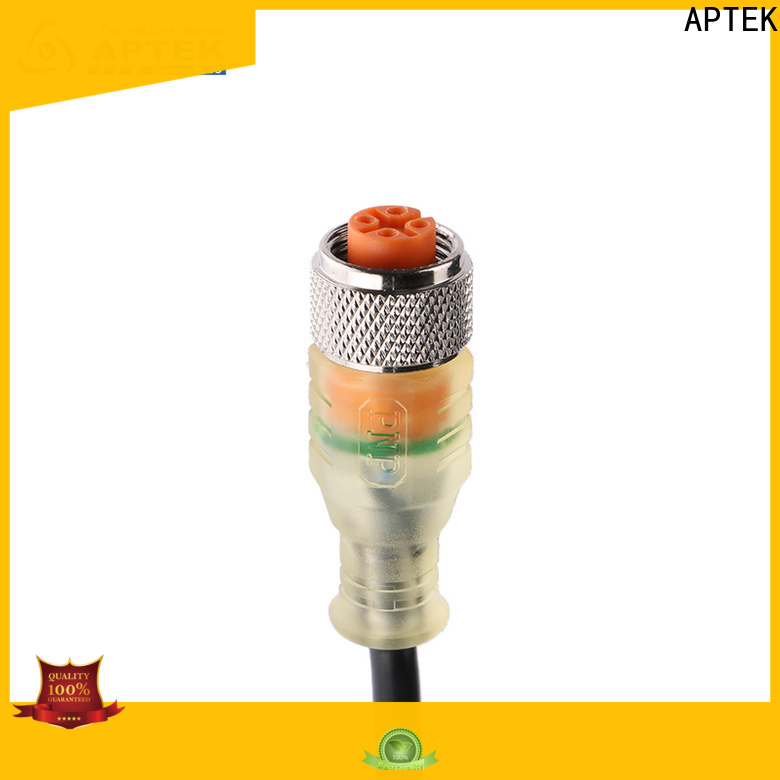

APTEK Wholesale m12 circular connector for sale for engineering-1
APTEK Wholesale m12 circular connector for sale for engineering-2



General Information


Connector SerriesM12
GenderFemale
Locking typeFix screw
Mounting typeStraight / Right angled
StandardIEC 61076-2-101
Ambient temperature-20℃ ~ +80℃
Connector overmoldTransparent PVC / TPU
Connector insertPA
Connector contactsBrass with gold plated
Coupling nut/screwBrass with nickel plated
Insulation resistance≥100 MΩ
Contact resistance≤ 5 mΩ
EMI ShieldingNon-Shielded
IP rating:IP 67 in locked condition
Locking Design:Anti-Vibration
Seal / O - ring:FKM


Electrical data & Mechanical data


ContactsCodingRated currentVoltageWire gauge/sizeCable jacketWire insulationCable ending & length
A/CD/CAWGmm²
03 pins

APTEK Wholesale m12 circular connector for sale for engineering-3

A-Coding4A30V30V22AWG0.34PUR / PVCPVCCustomized cable ending and length
04 pins

APTEK Wholesale m12 circular connector for sale for engineering-4

A-Coding4A30V30V22AWG0.34PUR / PVCPVC


Level and performance



APTEK m12 connector manufacturers is often of customized design which links into the product’s or brand’s characteristics and will subsequently emphasize or even strengthen the ‘feeling’ of these features. The product can turn on automatically when it gets dark
APTEK m12 circular connector is timeless, yet relevant and designed according to specific aesthetic, technical and environmental criteria, all while coordinating effortlessly with the hard surfaces offering. Its quality LED chips enable it to emit full brightness for a large area
APTEK m12 connector manufacturers is developed based on cutting edge energy-saving technologies. All its electric components, such as connector, conductor, and printed circuit board, are sophisticatedly manufactured. Owing to solar charging, users can save much cost without paying any electricity bills
APTEK m12 connector manufacturers is produced in line with environmental protection requirements. The electrolyte and metal ingredients in the battery cells have been tested to meet the national standards for the battery industry. Adopting a recyclable Li-ion battery, it causes no pollution to the environment
The design of APTEK m12 circular connector takes into account the application of color. It is determined by fashion professionals who understand the psychology and chemistry of color. The product can turn on automatically when it gets dark
m12 circular connector Durable and thickened materials are preferred, refined by advanced manufacturing technology, not only reasonable in design, excellent in workmanship, reliable in quality, but also have excellent properties such as wear resistance, corrosion resistance, and impact resistance, and are not easy to rust even after long-term use , deformation.
