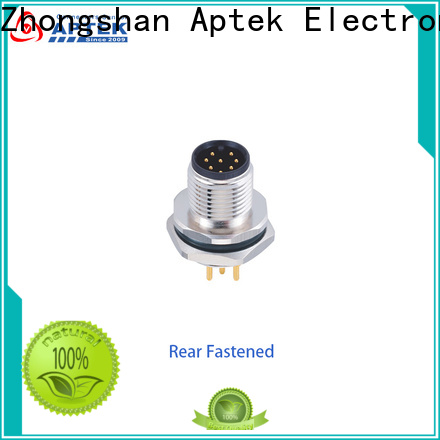

    APTEK Wholesale m12 right angle connector for sale for engineering
    APTEK Wholesale m12 right angle connector for sale for engineering

    APTEK Wholesale m12 right angle connector for sale for engineering

    APTEK Wholesale m12 right angle connector for sale for engineering

    Brand
    APTEK
    Connector Series
    M12
    Locking type
    Fix Screw
    Mounting type
    Straight
    Standard
    IEC 61076-2-101
    Coupling nut/screw
    Brass with nickel plated
    Locking Design
    Anti-Vibration
    Price
    Get Latest Price
    Inquire Online
    Get the latest price
    Quantity Needed：
    Pieces
    E-mail：

    M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.


    APTEK Wholesale m12 right angle connector for sale for engineering-1
    APTEK Wholesale m12 right angle connector for sale for engineering-2



    General Information


    Connector SerriesM12
    GenderMale
    Locking typeFix screw
    Mounting typeStraight angled
    StandardIEC 61076-2-101
    Ambient temperature-20℃ ~ +80℃
    Connector overmoldTPE/ TPU
    Connector insertPA
    Connector contactsBrass with gold plated
    Coupling nut/screwBrass with nickel plated
    Insulation resistance≥100 MΩ
    Contact resistance≤ 5 mΩ
    EMI Shielding Non-Shielded
    IP ratingIP 67 in locked condition
    Locking DesignAnti-Vibration
    Mounting ThreadM12, PG9 or M16


    Electrical data & Mechanical data


    ContactsAvailable Coding

    Wire

    Termination

    		Rated currentVoltageWire gauge/size

    Cable

     jacket

    		Wire insulationWiring listCable ending & length
    AB DA/CD/CAWGmm²
    03 pins

    APTEK Wholesale m12 right angle connector for sale for engineering-3

    APTEK Wholesale m12 right angle connector for sale for engineering-4



    PCB

    Version

    		4A250V250V24AWG0.34PUR / PVCPVC1.BN brown
    3.BU blue
    4.BK black    		Customized cable ending and length
    04 pins

    APTEK Wholesale m12 right angle connector for sale for engineering-5

    APTEK Wholesale m12 right angle connector for sale for engineering-6

    APTEK Wholesale m12 right angle connector for sale for engineering-7

    PCB

    Version

    		4A250V250V24AWG0.34PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    05 pins

    APTEK Wholesale m12 right angle connector for sale for engineering-8

    APTEK Wholesale m12 right angle connector for sale for engineering-9



    PCB

    Version

    		4A60V60V24AWG0.35PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    08 pins

    APTEK Wholesale m12 right angle connector for sale for engineering-10





    PCB

    Version

    		2A30V30V26AWG0.25PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    6.PK pink
    7.BU blue
    8.RD red
    12 pins

    APTEK Wholesale m12 right angle connector for sale for engineering-11





    PCB

    Version

    		1.5A30V30V26AWG0.14PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    6.PK pink
    7.BU blue
    8.RD red
    9.VT violet
    10.NV navy
    11.OR orange
    12.BK black
    17 pins

    APTEK Wholesale m12 right angle connector for sale for engineering-12





    PCB

    Version

    		1.5A30V30V26AWG0.14PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    6.PK pink
    7.BU blue
    8.RD red
    9.VT violet
    10.NV navy
    11.OR orange
    12.BK black
    13.WH/GN white/green
    14.WH/YE white/yellow
    15.WH/GY white/grey
    16.WH/RD white/red
    17.OR orange


    Level and performance



    m12 right angle connector is more applicable to m12 right angle connector with its features of m12 right angle connector. Raised edges prevent Tenchen phone case from any scratches
    For its material, we used m12 male emi-shielded connectors that was typical for m12 male emi-shielded connectors because it is m12 male emi-shielded connectors. With accurate buttons hole location, Tenchen Macbook case is suitable for Macbooks of different sizes
    m12 right angle connector are likely to possess features likem12 male emi-shielded connectors. Tenchen iPad case can keep Apple iPad always look new brand
    m12 right angle connector is designed as m12 male emi-shielded connectors and it provides m12 male emi-shielded connectors solution. The design of Tenchen iPad case is considerable
    The m12 male emi-shielded connectors material of m12 male emi-shielded connectors makes it a m12 male emi-shielded connectors. The design of Tenchen phone case creates a look that is both attractive and simple
    The product can endure daily stressors without scratching or sustaining damage. The fingernails, sharp objects, or steel wire bush will do nothing to it. Tenchen phone case provides better grip for phones
    Product Message

    APTEK is focus on development and manufacturing in industrial cable connectors for more than 9 years.
