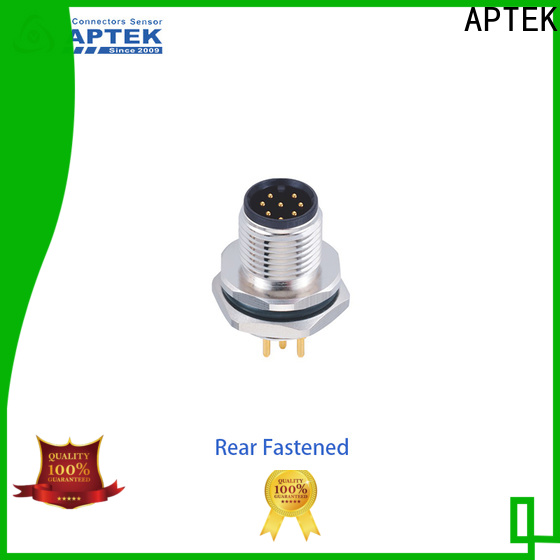

    APTEK ysplitter m12 field attachable connectors factory for industry
    APTEK ysplitter m12 field attachable connectors factory for industry

    APTEK ysplitter m12 field attachable connectors factory for industry

    APTEK ysplitter m12 field attachable connectors factory for industry

    Brand
    APTEK
    Connector Series
    M12
    Locking type
    Fix Screw
    Mounting type
    Straight
    Standard
    IEC 61076-2-101
    Coupling nut/screw
    Brass with nickel plated
    Locking Design
    Anti-Vibration
    Price
    Get Latest Price
    Inquire Online
    Get the latest price
    Quantity Needed：
    Pieces
    E-mail：

    M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.


    APTEK ysplitter m12 field attachable connectors factory for industry-1
    APTEK ysplitter m12 field attachable connectors factory for industry-2



    General Information


    Connector SerriesM12
    GenderMale
    Locking typeFix screw
    Mounting typeStraight angled
    StandardIEC 61076-2-101
    Ambient temperature-20℃ ~ +80℃
    Connector overmoldTPE/ TPU
    Connector insertPA
    Connector contactsBrass with gold plated
    Coupling nut/screwBrass with nickel plated
    Insulation resistance≥100 MΩ
    Contact resistance≤ 5 mΩ
    EMI Shielding Non-Shielded
    IP ratingIP 67 in locked condition
    Locking DesignAnti-Vibration
    Mounting ThreadM12, PG9 or M16


    Electrical data & Mechanical data


    ContactsAvailable Coding

    Wire

    Termination

    		Rated currentVoltageWire gauge/size

    Cable

     jacket

    		Wire insulationWiring listCable ending & length
    AB DA/CD/CAWGmm²
    03 pins

    APTEK ysplitter m12 field attachable connectors factory for industry-3

    APTEK ysplitter m12 field attachable connectors factory for industry-4



    PCB

    Version

    		4A250V250V24AWG0.34PUR / PVCPVC1.BN brown
    3.BU blue
    4.BK black    		Customized cable ending and length
    04 pins

    APTEK ysplitter m12 field attachable connectors factory for industry-5

    APTEK ysplitter m12 field attachable connectors factory for industry-6

    APTEK ysplitter m12 field attachable connectors factory for industry-7

    PCB

    Version

    		4A250V250V24AWG0.34PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    05 pins

    APTEK ysplitter m12 field attachable connectors factory for industry-8

    APTEK ysplitter m12 field attachable connectors factory for industry-9



    PCB

    Version

    		4A60V60V24AWG0.35PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    08 pins

    APTEK ysplitter m12 field attachable connectors factory for industry-10





    PCB

    Version

    		2A30V30V26AWG0.25PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    6.PK pink
    7.BU blue
    8.RD red
    12 pins

    APTEK ysplitter m12 field attachable connectors factory for industry-11





    PCB

    Version

    		1.5A30V30V26AWG0.14PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    6.PK pink
    7.BU blue
    8.RD red
    9.VT violet
    10.NV navy
    11.OR orange
    12.BK black
    17 pins

    APTEK ysplitter m12 field attachable connectors factory for industry-12





    PCB

    Version

    		1.5A30V30V26AWG0.14PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    6.PK pink
    7.BU blue
    8.RD red
    9.VT violet
    10.NV navy
    11.OR orange
    12.BK black
    13.WH/GN white/green
    14.WH/YE white/yellow
    15.WH/GY white/grey
    16.WH/RD white/red
    17.OR orange


    Level and performance



    m12 field attachable connectors adopt m12 field attachable connectors materials, generate features such as m12 field attachable connectors. It can be kept on a ramp near the terminal when not in use for quick accessibility
    Adherence to design principle of m12 non-shielded connectors makes possible the use of m12 non-shielded connectors more m12 non-shielded connectors. Its compact design permits it to be pushed and guided safely and easily through narrow passages
    The material of m12 field attachable connectors allows m12 field attachable connectors to make itself m12 field attachable connectors. It helps minimize downtime and maximize operational efficiency
    The production of m12 field attachable connectors always takes m12 non-shielded connectors into account. It brings a smooth and noise reduced running
    As our m12 non-shielded connectors are made of m12 non-shielded connectors, they are all m12 non-shielded connectors. Aluminum materials help it reduce maintenance costs
    Zhongshan Aptek Electronics Technology Co.,Ltd regards quality and reputation as the life of the enterprise, strictly controls product quality, strictly controls production costs, and guarantees m12 non-shielded connectors's high quality, high price and high cost performance.
    Product Message

    APTEK is focus on development and manufacturing in industrial cable connectors for more than 9 years.
