Company Advantages1. m12 x coded connector produced by Zhongshan Aptek Electronics Technology Co.,Ltd are chiefly characterized by their m12 male emi-shielded connectors . APTEK manufactures connectors up to the IEC international standard
2. Zhongshan Aptek Electronics Technology Co.,Ltd There is a professional documentary team to track the completed orders in real time, and timely provide customers with thoughtful reminder services such as product delivery date, delivery information, delivery notice, etc., so that customers can rest assured in purchasing, and can also sell products later Follow up the situation, give customers sales suggestions in time, so that customers can quickly find out the sales direction after purchasing m12 x coded connector , effectively recover costs and obtain profits, and thus receive unanimous praise from customers.
3. The product features sound absorption. It is capable of blocking airborne sound and its construction is ensured that there are no gaps and leaks. Fast delivery is a promise of APTEK: only 2 weeks are needed
4. The product features great electromagnetic compatibility. It has the ability to function satisfactorily in its electromagnetic environment without introducing intolerable electromagnetic disturbance to anything in that environment. Founded in 2009, APTEK is a professional manufacturer of industrial waterproof connectors
5. This product falls in the range of optimum comfort in terms of its energy absorption. It gives a hysteresis result of 20 - 30%2, in line with the 'happy medium' of hysteresis that will cause optimum comfort of around 20 - 30%. APTEK produces connectors with precision, quality, and competitiveness

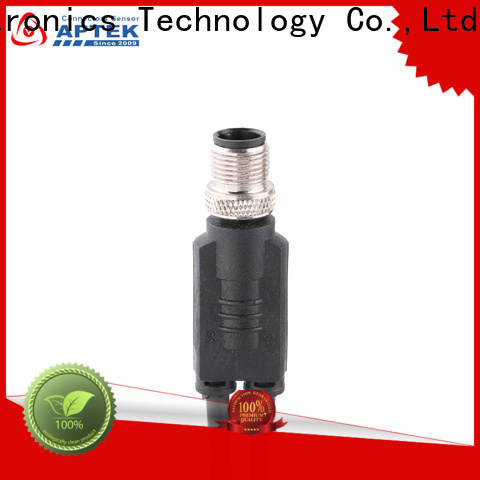

M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.
| Connector Serries | M12, Y-Splitter |
| Gender | Male |
| Locking type | Fix screw |
| Mounting type | Straight |
| Standard | IEC 61076-2-101 |
| Ambient temperature | -20℃ ~ +80℃ |
| Connector overmold | TPE/ TPU |
| Connector insert | PA |
| Connector contacts | Brass with gold plated |
| Coupling nut/screw | Brass with nickel plated |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤ 5 mΩ |
| EMI Shielding | Available |
| IP rating: | IP 67 in locked condition |
| Locking Design: | Anti-Vibration |
| Seal / O - ring: | FKM |
| Contacts | Available Coding | Rated current | Voltage | Wire gauge/size | Cable jacket | Wire insulation | Wiring list | Cable ending & length |
| A | B | D | A/C | D/C | AWG | mm² |
| 04 pins |
|
|
| 4A | | 250V | 24AWG | 0.34 | PUR / PVC | PVC | 1.BN brown
2.WH white
3.BU blue
4.BK black | Customized cable ending and length |
| 05 pins |
|
| | 4A | 60V | 60V | 24AWG | 0.35 | PUR / PVC | PVC | 1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey |
| 08 pins |
| | | 4A | 30V | 30V | 26AWG | 0.25 | PUR / PVC | PVC | 1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red |
Company Features1. Zhongshan Aptek Electronics Technology Co.,Ltd takes pride in the developing and manufacturing of m12 male emi-shielded connectors . Currently, we have become one of the leading manufacturers in this industry. Zhongshan Aptek Electronics Technology Co.,Ltd has independent products researching and developing ability.
2. The glory of Zhongshan Aptek Electronics Technology Co.,Ltd can not be separated from the support and selfless dedication of its technical teams.
3. Zhongshan Aptek Electronics Technology Co.,Ltd's production technology is parallel to world class technology. APTEK survives with quality, seek for development with technology. Please contact us!
