1. APTEK m5 male connector is meticulously manufactured. The engineers will again and again confirm the geometric details supplied are correct before the commencement of work. Even small customized lots could be accepted by APTEK
2. APTEK will arrange the delivery as soon as you put an order. Founded in 2009, APTEK is a professional manufacturer of industrial waterproof connectors
3. Its technical parameters are in line with international standards and guidelines. It will effectively support users' today and long-term needs. Fast delivery is a promise of APTEK: only 2 weeks are needed

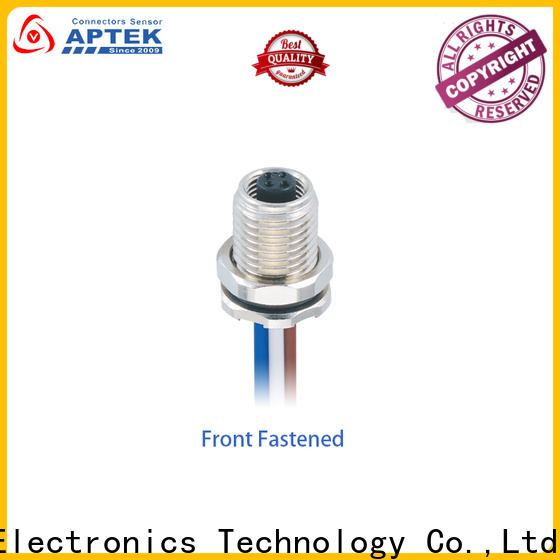

The series of M5 circular connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

Custom circular cable connectors nonshielded manufacturers for industry-1

Custom circular cable connectors nonshielded manufacturers for industry-2

General Information

Connector Serries	M5
Gender	Female
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-105
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	1A	60V	60V	26AWG	0.14	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	1A	60V	60V	26AWG	0.14	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black	Customized cable ending and length

Level and performance

Company Features
1. The circular cable connectors in APTEK is widely popular in this field for its high quality.
2. We aim to shape climate leadership. We figure out sustainable business solutions that align with and lead the transition of the low carbon economy, thereby foster economic growth in more climate-friendly ways.

w******u

The entire production process of APTEK m5 male connector is tightly controlled, from selecting the finest fabrics to processing them into finished clothing. This product consumes little energy thanks to its energy-saving technology

l******v

The raw materials of APTEK m5 male connector such as fabrics and trims are strictly checked for flaws and defects to ensure the high quality of the finished product. This product has a wide range of operating temperatures

r******j

APTEK m5 male connector has undergone a series of visual examination procedures such as the color of the fabric and the cleanness of sewing threads. This product is mainly used for the automation process

j******k

APTEK m5 male connector is dyed using precise combinations of pressure, temperature and time. Through this process, its color effect is satisfying. Its power ratings can be customized e based on requests

v******x

The fabric of APTEK m5 male connector is sourced from reliable suppliers who have signed years of contracts with us to ensure the best fabric quality. It generates only little magnetic interference

l******z

APTEK believes that the quality is the soul of an enterprise. It works stably under strong impact and vibration conditions
