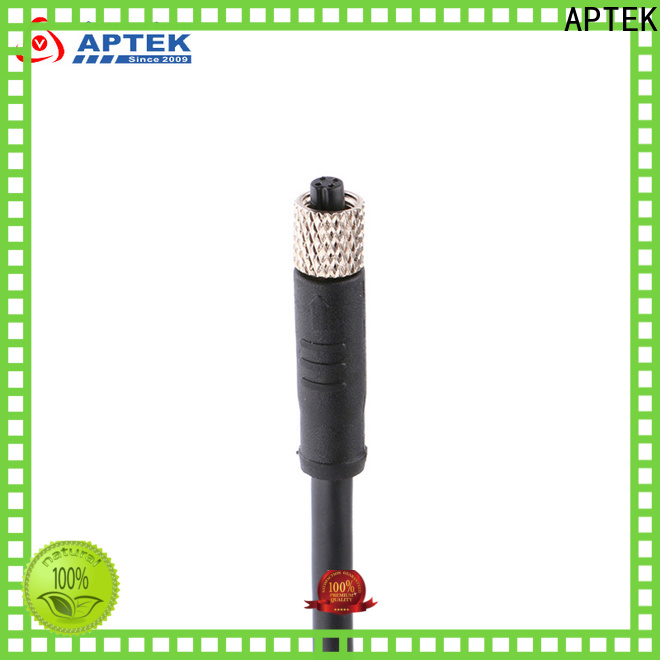

The series of M5 circle connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

Latest circular cable connectors lead supply for industry-1

Latest circular cable connectors lead supply for industry-2

General Information

Connector Serries	M5
Gender	female
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-105
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	1A	60V	60V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	1A	60V	60V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black	Customized cable ending and length

Level and performance

e******g

The manufacture of APTEK m5 female cable connector is professional. The process mainly includes metal material purchase, rack manufacturing, component processing assembly, and debugging. This product has a compact and robust design

k******p

In APTEK circular cable connectors production process, strict quality testing is carried out. These tests include yarn density, gram weight, structural strength, fabric shrinkage, tear strength, etc. It requires no electrical or mechanical drive connections

m******m

The raw materials of APTEK circular cable connectors are safe and non-toxic. These materials have been tested and do not contain toxic ingredients such as formaldehyde and aromatic amines. It can be tailored to meet the specific requirements of customers

z******h

APTEK circular cable connectors is designed to meet specific heavy-duty requirements. Its design features mechanical structure enhancement, low energy consumption, and durable components. Its operation is safe with no heat, flame or spark risk

m******y

APTEK circular cable connectors is designed to be safe. It has passed a series of comprehensive product quality control tests to ensure that it is completely free of carcinogens. It can be tailored to meet the specific requirements of customers

v******f

The filter element of m5 female cable connector has a built-in reverse osmosis RO membrane, which has large dirt holding capacity and strong filtering effect, and can effectively remove harmful substances such as heavy metals, bacteria, and scale in water.
