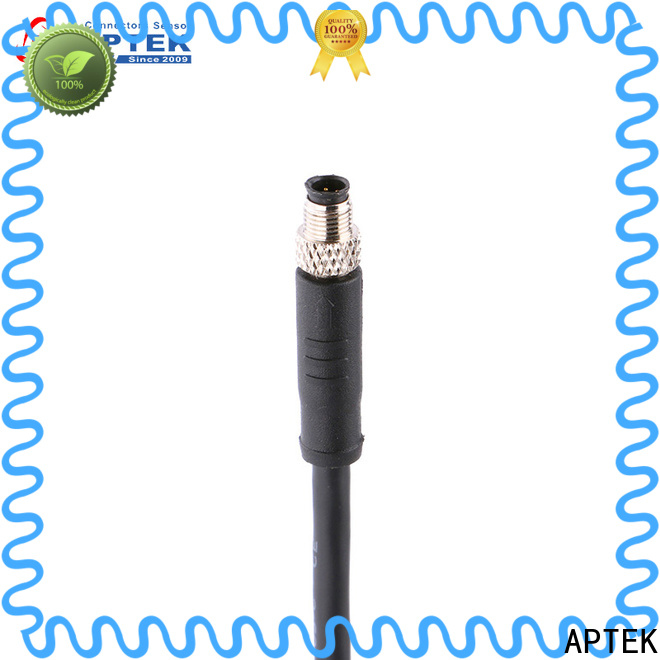

The series of M5 circle connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

Latest circular cable connectors nonshielded suppliers for industry-1

Latest circular cable connectors nonshielded suppliers for industry-2

General Information

Connector Serries	M5
Gender	Male
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-105
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	1A	60V	60V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	1A	60V	60V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black	Customized cable ending and length

Level and performance

d******e

There will be a series of quality control processes for APTEK circular cable connectors. The inspection was carried out from the aspects of washing appearance, washing fastness, rubbing fastness and dye quality. The product is environmental-friendly, meeting the requirements of sustainable living

w******l

APTEK circular cable connectors will go through a comprehensive inspection, including its internal stress, fatigue resistance, dimensional accuracy, surface treatment effect, and other mechanical properties. It is available in different wattages

x******r

APTEK circular cable connectors has been checked in many aspects, such as packaging, color, measurements, marking, labeling, instruction manuals, accessories, humidity test, aesthetics, and appearance. The product features quick and easy installation

f******r

The principle of unification in bedding design has been well used in APTEK circular cable connectors. It guarantees a unique and harmonious design for the product. It offers a comfortable and soft light for people's eyes

m******c

APTEK circular cable connectors is developed for optimal performance. After many simulations, its illuminating parameters are close to the ideal value. It adopts an anti-vibration structure design, which ensures maximum safety

p******h

The product features mildew resistance. The mouldproof process is conducted to endow the materials with excellent and long-lasting mildew proof capacity in the sunlight, atmosphere, or contaminant conditions. It doesn't have the problems of light attenuation and light spots
