M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

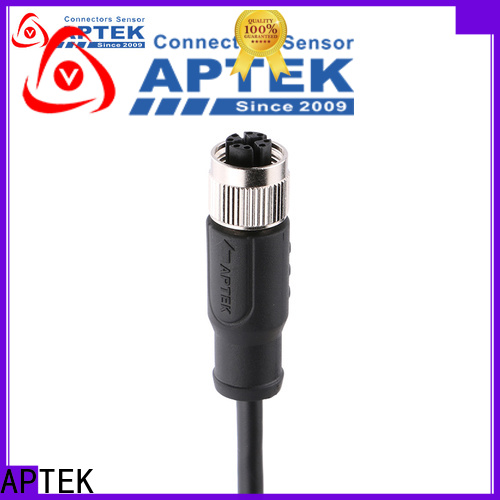

Latest m12 right angle connector molded for business for industry-1

Latest m12 right angle connector molded for business for industry-2

General Information

Connector Serries	M12
Gender	Female
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-109
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Shielded
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration
Transmission characteristic:	CAT 6A
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts

Coding

Rated current

Voltage

Wire gauge/size

Cable jacket

Wire insulation

Cable Sepc

Wiring list

Cable ending & length

A/C

D/C

AWG

mm²

08 pins

Latest m12 right angle connector molded for business for industry-3

X-Coding

0.5A

48V

60V

24~27AWG

0.14~0.25

PUR / PVC

HDPE

CAT 6A

1.WH/OR white/orange
2.OR orange
3.WH/GN white/green
4.GN green
5.WH/BN white/brown
6.BN brown
7.WH/BU white/blue
8.BU blue

Customized cable ending and length
