M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

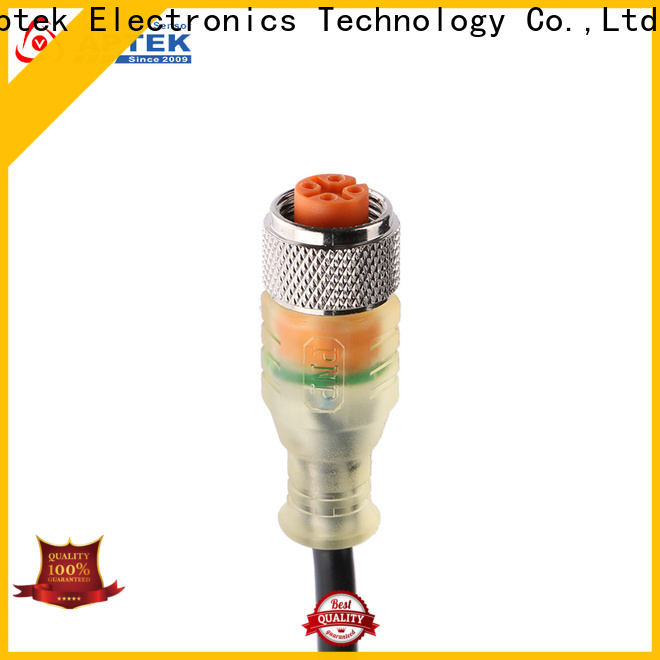

Latest m12 sensor connectors termination supply for industry-1

Latest m12 sensor connectors termination supply for industry-2

General Information

Connector Serries	M12
Gender	Female
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-101
Ambient temperature	-20℃ ~ +80℃
Connector overmold	Transparent PVC / TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Cable ending & length
03 pins	A-Coding	4A	30V	30V	22AWG	0.34	PUR / PVC	PVC	Customized cable ending and length
04 pins	A-Coding	4A	30V	30V	22AWG	0.34	PUR / PVC	PVC	Customized cable ending and length

Level and performance

i******o

APTEK [m12 sensor connectors is of high performance. It has undergone professional and strict spectral and photoelectric analysis to has high luminous efficiency. The product has reliable performance and simple access to the operation

d******a

APTEK m12 sensor connectors is developed by the R&D team who have spent years investigating water improvement. The team creates this product with the purpose of reducing or removing all contaminants that are present in the water. Its seal systems are designed for a long working life

o******g

The quality control of APTEK m12 din connector is conducted rigorously. It is tested in terms of its air circulation, surface treatment, as well as the most important part, thermal dissipation performance. Its output pressure can be easily adjustable

b******e

Before the delivery of APTEK m12 din connector, it will be checked by our well-qualified engineers and technicians to ensure its cooling effect and the availability of refrigerants. It helps save costs and prevent contamination

l******v

APTEK m12 din connector is manufactured by utilizing computerized tensile strength testers which test the physical pulling force strength of rubber. The product is suitable for most liquids and liquefied gases

g******w

It comes with fine reflectivity. More light is reflected as its fabric has a high thread count and is tightly woven together. It is automated with many modification and control options available
