Product Information
Feedback

Company Advantages
1. m12 waterproof connector It is made of healthy and environmentally friendly materials, and is manufactured with fine processing technology. The surface is smooth and textured, the quality is reliable and guaranteed, the texture is firm and durable, and it is durable.
2. Zhongshan Aptek Electronics Technology Co.,Ltd works exhaustively to ensure the procedures and products conform to applicable standards. APTEK has guaranteed the applications of connectors in food & beverage, chemicals, wood, LED lighting, etc
3. The product features good waterproof performance. Its housing is well sealed to effectively prevent water or moisture from entering into the circuit boards. APTEK produces connectors with precision, quality, and competitiveness

M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

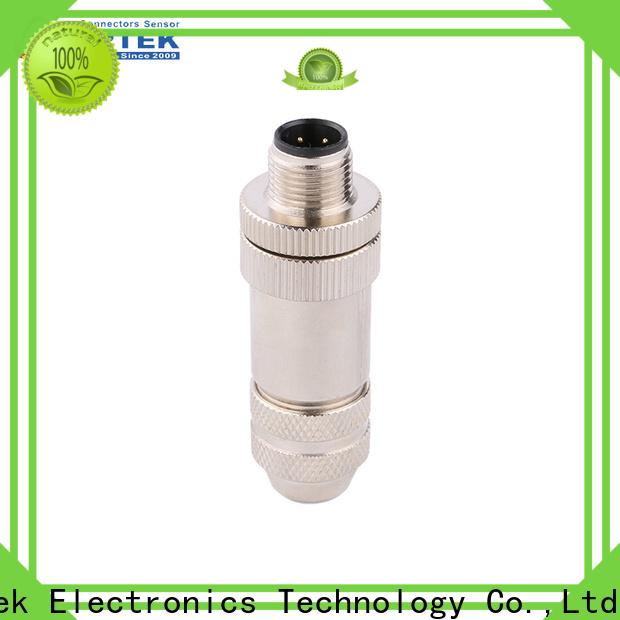

Latest m12 waterproof connector male for business for engineering-1

Dimensions

Latest m12 waterproof connector male for business for engineering-2

General Information

Connector Serries	M12
Gender	Male
Locking type	Fix screw
Mounting type	Straight
Mounting thread	PG7 or PG9
Standard:	IEC 61076-2-101
Ambient temperature:	-25℃ ~ +80℃
Connector body:	Zinc alloy with nickel plated
Connector insert:	PA + GF
Connector contacts:	Brass with gold plated
Coupling nut/screw:	Brass with nickel plated
Insulation resistance:	≥100 MΩ
Contact resistance:	≤ 5 mΩ
EMI Shielding:	Shielded
Suitable cable Dia:	6.0 ~ 8.0mm
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration

Electrical data & Mechanical data

Contacts	Available Coding			Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	A	B	D	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins				4A	250V	250V	18 ~26AWG	0.75~0.14	PVC	Customized cable ending and length
04 pins				4A	250V	250V	18 ~26AWG	0.75~0.14	PVC
05 pins				4A	60V	60V	18 ~26AWG	0.75~0.14	PVC
08 pins				2A	30V	30V	18 ~26AWG	0.75~0.14	PVC

Level and performance
