The series of M5 circular connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

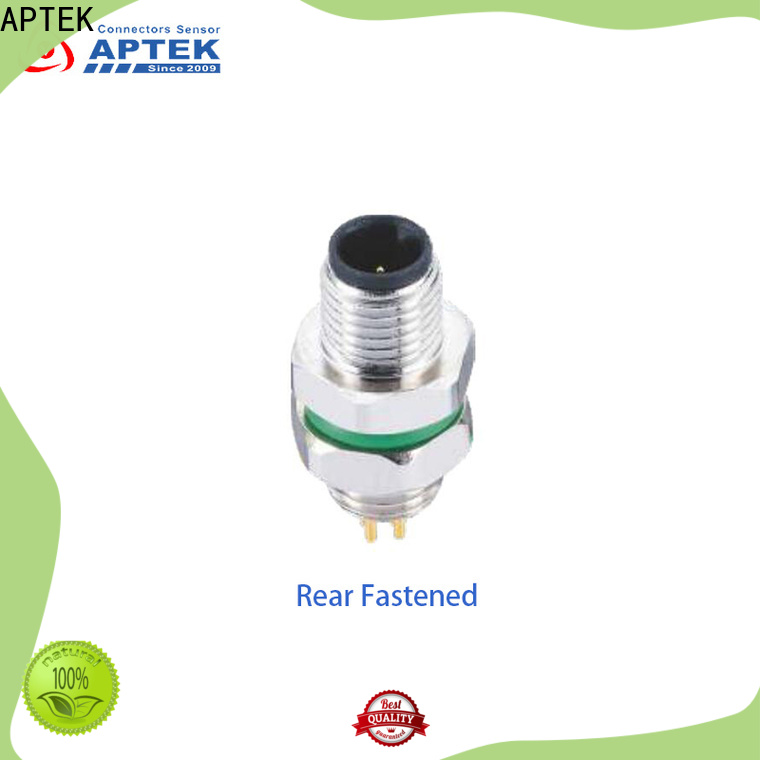

Latest m5 circular connector solder factory for engineering-1

Latest m5 circular connector solder factory for engineering-2

General Information

Connector Serries	M5
Gender	Male
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-105
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Wire Termination	Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	Coding	Wire Termination	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins	A-Coding	PCB Version	1A	60V	60V	26AWG	0.14	PVC	Customized cable ending and length
04 pins	A-Coding	PCB Version	1A	60V	60V	26AWG	0.14	PVC	Customized cable ending and length
