The series of FieldBus cable connectors are desinged to support the industrial protocols including Devicenet, CAN-BUS, Profibus, Profinet, EtherCAT cable ...

New custom cable assemblies m12 company for industry-1

General Information

Connector Serries	Industrial I/O Connectors
Gender	Female
Locking type	Fix screw
Mounting type	Straight

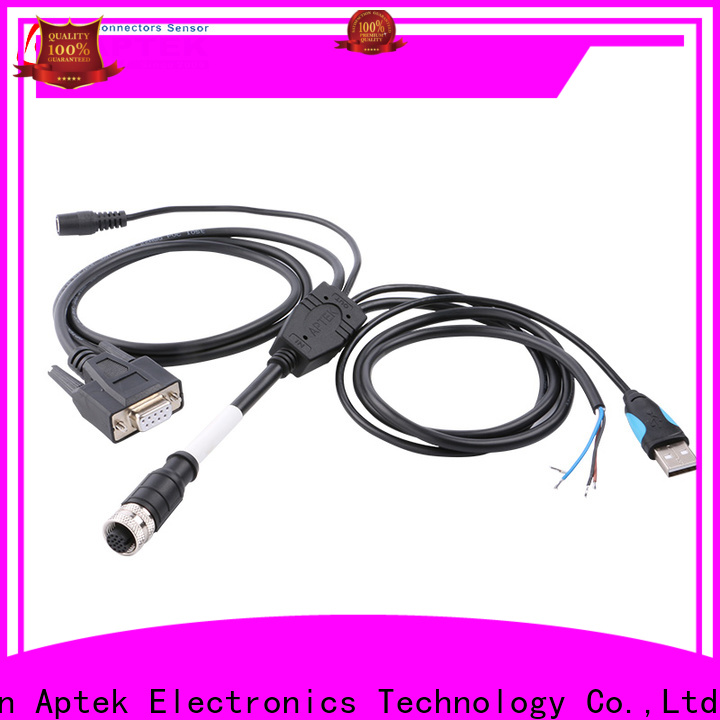

Connector	M12 Female x 1, D-Sub 9Pin Female x 1, USB 2.0A x 1, Power Cable Plug x 1
Ambient temperature	-25℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring	FKM

Electrical data & Mechanical data

Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Cable Sepc	Cable ending & length
	A/C	D/C	AWG	mm²
0.5A	48V	60V	24~27AWG	0.14~0.25	PUR / PVC	HDPE	CAT 6A	Customized cable ending and length

Level and performance

y******w

Each step is strictly monitored by the professional quality inspection department. A continuous inspection system is implemented to ensure the high quality of this product. This product has the advantage of high accuracy

z******q

The adoption of advanced equipment and the lean production method make APTEK cable assembly companies more cost-effective. This product has the feature of explosion-proof

h******u

The source of raw materials: before APTEK custom cable assemblies comes out, it is processed from high quality raw materials. These materials are sourced from several different places within and out of the region. This product is mainly used for the automation process

j******l

APTEK custom cable assemblies is manufactured with accuracy in specifications. This product has been certified under CE and RoHS

a******w

Strong designer team: APTEK custom cable assemblies is designed by our design team who are powerful with professional design knowledge. They are also well-trained to put forward design concept and complete the design in a short time. Its shape can be customized according to needs

v******c

It has a low fabric shrinkage rate. The fabric has been treated under steam or atomizing, extruded by machine, and dried, which makes the shrinkage rate drop to 1% or lower. This product stands out for its high sensitivity
