Junction Box provides more extension possiblity to industrial field control. The distribution boxes are available in 4, 6, 8 or 12 ports with either 4 or 5 poles per port. Ther master cable can be configured iva a M23 connector or pre-molded cable on the junction box.

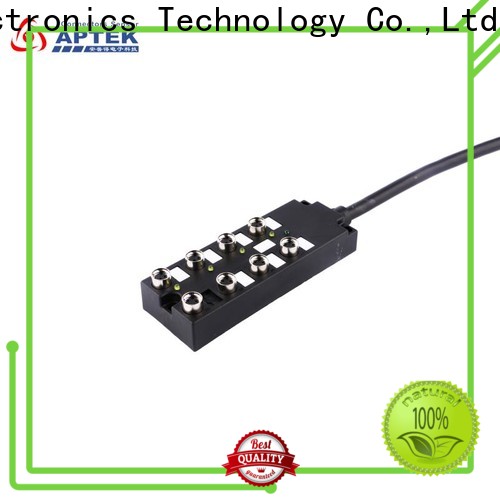

New distribution box box for business for industrial protocols-1

General Information

Connector Serries	Junction Box
Ports	8
Locking type	Fix screw
Mounting type	Straight
LED Colour	Yellow
Ambient temperature	-40℃ ~ +80℃ Fix Installation
Material of body	PBT
Connector insert	TPU
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Body Colour	Black or Yellow
Contact resistance	≤ 5 mΩ
Rated Voltage with/without LED	10~30V/120V
Rated current	2A per signal, 6A total
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Cable ending & length
			A/C	D/C	AWG	mm²
03 pins	A-Coding	2A；6A	120V	120V	22~24	0.5~0.25	PUR / PVC	Customized cable ending and length

Level and performance

e******q

APTEK distribution box is manufactured using a wide range of cutting-edge machines. They are cutting bed, cloth cutting machine, chain-blindstitch machine, flat sewing machine, needle lockstitch machine, ironing drawing, and baler.

t******m

APTEK cable connector block has passed various tests. They are abrasion resistance testing, colorfastness testing, tear strength testing, flammability testing, etc.

v******t

APTEK cable connector block is professionally manufactured. It is carried out by expert developers with mechanical design automation and the ability to solve practical engineering problems.

u******p

During the design phase of APTEK distribution box, many factors have been taken into account. These factors include design concepts, aesthetics, spatial layout, and safety.

y******q

APTEK distribution box is manufactured after a series of complicated and sophisticated processes. They are mainly materials preparation, frame extruding, surface treating, and quality testing, and all these processes are carried out according to standards for exported furniture.

q******f

Internationally-certified quality: The product, tested by the authoritative third-party, has been approved to meet with the widely-recognized international quality standards.
