Product Information
Feedback

Company Advantages
1. Our superior material for m12 panel mount connectors is our great sale point. APTEK makes sure that each connector matches different environmental standards in all countries
2. People will find that its color is always even without any streaks or spots, and they have no worry that the color will fade. APTEK, founded in 2009, focuses on developing connectors & sensors
3. It is specially engineered to save cost and labor. APTEK is a focus on industrial connectors for nearly 10 years
4. As it is manufactured in strict accordance with the international quality standard, the product is of assured quality. Easy Connection at Industrial Sites is the pursuit of APTEK
5. The product is promised to be of premium quality as we regard the quality as our priority. APTEK has a wide range of metric circular connectors and cable assembly that fit almost all standards

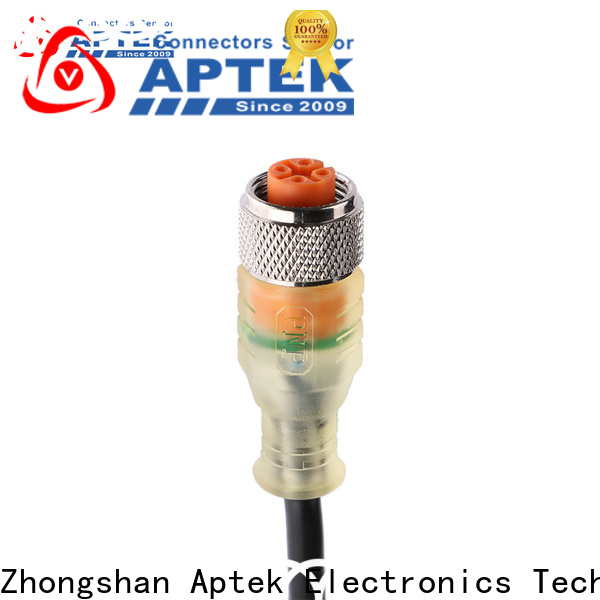

M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

New m12 panel mount connectors termination factory for industry-1

New m12 panel mount connectors termination factory for industry-2

General Information

Connector Serries	M12
Gender	Female
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-101
Ambient temperature	-20℃ ~ +80℃
Connector overmold	Transparent PVC / TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Cable ending & length
03 pins	A-Coding	4A	30V	30V	22AWG	0.34	PUR / PVC	PVC	Customized cable ending and length
04 pins	A-Coding	4A	30V	30V	22AWG	0.34	PUR / PVC	PVC	Customized cable ending and length

Level and performance

Company Features
1. Studying on the application of independent technology innovation will also contribute to the dominant position of APTEK.
2. Our commitment to the highest standards in the products we make and the service we offer is the guarantee of satisfaction for customers.

r******r

Each step is strictly monitored by the professional quality inspection department. A continuous inspection system is implemented to ensure the high quality of this product. This product has the advantage of high accuracy

n******b

The adoption of advanced equipment and the lean production method make APTEK m12 4 pin male connector more cost-effective. The function of this product can be customized to meet the needs of liquids, granules, slurries, solids, and powder

n******h

The source of raw materials: before APTEK m12 panel mount connectors comes out, it is processed from high quality raw materials. These materials are sourced from several different places within and out of the region. This product stands out for its high sensitivity

t******s

APTEK m12 panel mount connectors is manufactured with accuracy in specifications. It generates only little magnetic interference

p******d

Strong designer team: APTEK m12 4 pin male connector is designed by our design team who are powerful with professional design knowledge. They are also well-trained to put forward design concept and complete the design in a short time. This product consumes little energy thanks to its energy-saving technology

b******l

It has a low fabric shrinkage rate. The fabric has been treated under steam or atomizing, extruded by machine, and dried, which makes the shrinkage rate drop to 1% or lower. The function of this product can be customized to meet the needs of liquids, granules, slurries, solids, and powder
