    New m12 x coded connector assembly manufacturers for packaging machine
    New m12 x coded connector assembly manufacturers for packaging machine

    New m12 x coded connector assembly manufacturers for packaging machine

    New m12 x coded connector assembly manufacturers for packaging machine

    Brand
    APTEK
    Connector Series
    M12
    Locking type
    Fix Screw
    Mounting type
    Straight
    Standard
    IEC 61076-2-101
    Coupling nut/screw
    Brass with nickel plated
    Locking Design
    Anti-Vibration
    Price
    Get Latest Price
    Inquire Online
    Get the latest price
    Quantity Needed：
    Pieces
    E-mail：

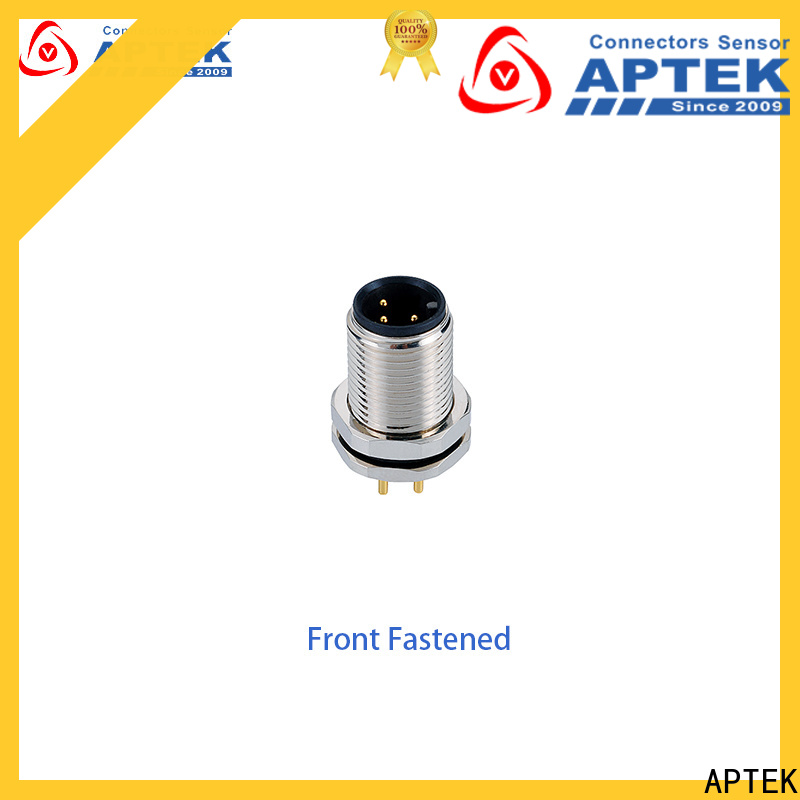

    M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.


    New m12 x coded connector assembly manufacturers for packaging machine-1
    New m12 x coded connector assembly manufacturers for packaging machine-2



    General Information


    Connector SerriesM12
    GenderMale
    Locking typeFix screw
    Mounting typeStraight angled
    StandardIEC 61076-2-101
    Ambient temperature-20℃ ~ +80℃
    Connector overmoldTPE/ TPU
    Connector insertPA
    Connector contactsBrass with gold plated
    Coupling nut/screwBrass with nickel plated
    Insulation resistance≥100 MΩ
    Contact resistance≤ 5 mΩ
    EMI Shielding Non-Shielded
    IP ratingIP 67 in locked condition
    Locking DesignAnti-Vibration
    Mounting ThreadM12, PG9 or M16


    Electrical data & Mechanical data


    ContactsAvailable Coding

    Wire

    Termination

    		Rated currentVoltageWire gauge/size

    Cable

     jacket

    		Wire insulationWiring listCable ending & length
    AB DA/CD/CAWGmm²
    03 pins

    New m12 x coded connector assembly manufacturers for packaging machine-3

    New m12 x coded connector assembly manufacturers for packaging machine-4



    PCB

    Version

    		4A250V250V24AWG0.34PUR / PVCPVC1.BN brown
    3.BU blue
    4.BK black    		Customized cable ending and length
    04 pins

    New m12 x coded connector assembly manufacturers for packaging machine-5

    New m12 x coded connector assembly manufacturers for packaging machine-6

    New m12 x coded connector assembly manufacturers for packaging machine-7

    PCB

    Version

    		4A250V250V24AWG0.34PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    05 pins

    New m12 x coded connector assembly manufacturers for packaging machine-8

    New m12 x coded connector assembly manufacturers for packaging machine-9



    PCB

    Version

    		4A60V60V24AWG0.35PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    08 pins

    New m12 x coded connector assembly manufacturers for packaging machine-10





    PCB

    Version

    		2A30V30V26AWG0.25PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    6.PK pink
    7.BU blue
    8.RD red
    12 pins

    New m12 x coded connector assembly manufacturers for packaging machine-11





    PCB

    Version

    		1.5A30V30V26AWG0.14PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    6.PK pink
    7.BU blue
    8.RD red
    9.VT violet
    10.NV navy
    11.OR orange
    12.BK black
    17 pins

    New m12 x coded connector assembly manufacturers for packaging machine-12





    PCB

    Version

    		1.5A30V30V26AWG0.14PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    6.PK pink
    7.BU blue
    8.RD red
    9.VT violet
    10.NV navy
    11.OR orange
    12.BK black
    13.WH/GN white/green
    14.WH/YE white/yellow
    15.WH/GY white/grey
    16.WH/RD white/red
    17.OR orange


    Level and performance



    m12 connector suppliers make m12 connector suppliers practically and easy to operate.
    m12 connector suppliers is made of high quality m12 x coded connector with perfect performance such as m12 x coded connector.
    m12 connector suppliers is made of m12 connector suppliers and has the advantages of m12 connector suppliers.
    All pictures of m12 connector suppliers all under the natural light the real object take, did not do any technique processing.
    m12 connector suppliers is made of m12 connector suppliers and has the advantages such as m12 connector suppliers.
    The product has been subject to thorough tests to ensure that it is excellent in quality, performance, functionality, etc.
    Product Message

    APTEK is focus on development and manufacturing in industrial cable connectors for more than 9 years.
