The series of FieldBus cable connectors are desinged to support the industrial protocols including Devicenet, CAN-BUS, Profibus, Profinet, EtherCAT cable ...

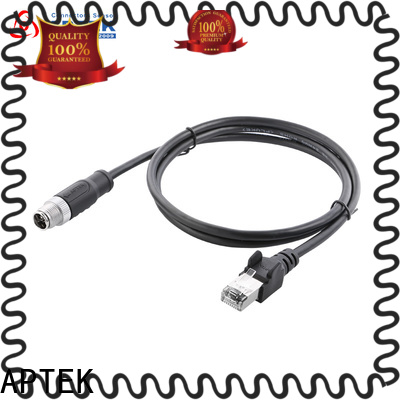

New profinet cable connectors ethercat factory for industrial protocols-1

General Information

Connector Serries	FieldBus
Gender	Male
Locking type	Fix screw
Mounting type	Straight
Connector	M12 Female, RJ45 CAT 5E
Ambient temperature	-25℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring	FKM

Electrical data & Mechanical data

Contacts

Coding

Rated current

Voltage

Wire gauge/size

Cable jacket

Wire insulation

Cable Sepc

Wiring list

Cable ending & length

A/C

D/C

AWG

mm²

08 pins

New profinet cable connectors ethercat factory for industrial protocols-2

X-Coding

0.5A

48V

60V

24~27AWG

0.14~0.25

PUR / PVC

HDPE

CAT 6A

1.WH/OR white/orange
2.OR orange
3.WH/GN white/green
4.GN green
5.WH/BN white/brown
6.BN brown
7.WH/BU white/blue
8.BU blue

Customized cable ending and length
