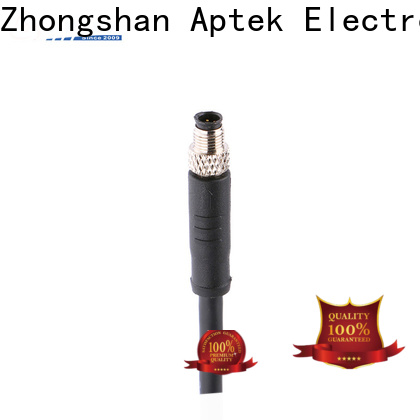

The series of M5 circle connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

Top connector m5 nonshielded supply for industry-1

Top connector m5 nonshielded supply for industry-2

General Information

Connector Serries	M5
Gender	Male
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-105
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	1A	60V	60V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	1A	60V	60V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black	Customized cable ending and length

Level and performance

b******a

When designing APTEK m5 female cable connector, color is one of the important factors to consider, because it is the first element of consumer response, often choosing or rejecting a piece of bedding because of its color appeal. It allows company owners to compact a lot of information in a small area

p******w

APTEK connector m5 is developed and produced according to the concepts of comfort, breathability, wrinkle resistance and moisture absorption to meet the highest textile standards. This product comes in various shapes and sizes

k******r

The raw materials of APTEK m5 female cable connector are safe and non-toxic. These materials have been tested and do not contain toxic ingredients such as formaldehyde and aromatic amines. It can be used as an effective tool for marketing and brand promotion

w******u

APTEK connector m5 has undergone rigorous testing. These inspections include overall shape and balance checks, fabrics for structural testing, and color fastness checks. The pattern printed on this product appeal to consumers

e******t

APTEK connector m5 has experienced a series of appearance inspection procedures, such as fabric color, sewing thread cleanliness and so on. The product provides an excellent way to increase sales_x000D_

i******a

Zhongshan Aptek Electronics Technology Co.,LtdThrough continuous technological learning and innovation, new concepts are incorporated into the R&D and production of m5 female cable connector, and the traditional model is broken through. Its own scientific cost control measures make the price of the product better, so that the overall cost performance of the product is higher, and it has more advantages in the market competition.
