The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

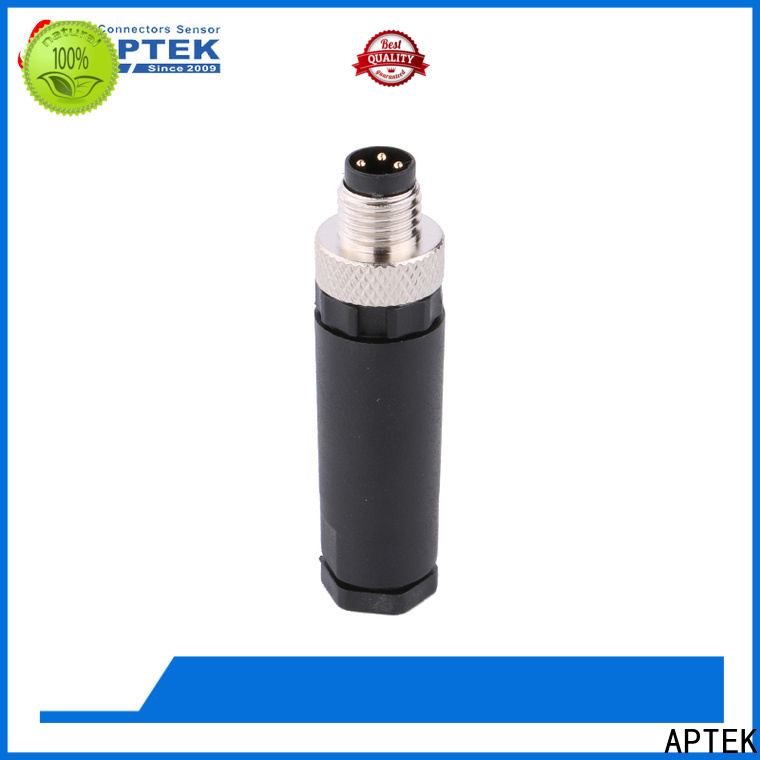

Top m8 circular connector female factory for industry-1

Top m8 circular connector female factory for industry-2

General Information

Connector Serries	M8
Gender	Male
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-104
Ambient temperature	-25℃ ~ +80℃
Connector overmold	PA + GF
Connector insert	PA + GF
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
Suitable cable Dia:	3.5 ~ 5.0mm
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins	A-Coding	3A	60V	60V	22~26AWG	0.34~0.14	PVC	Customized cable ending and length
04 pins	A-Coding	3A	60V	60V	22~26AWG	0.14~0.34	PVC	Customized cable ending and length

Level and performance

x******t

During production, the electrical problems of APTEK m8 circular connector have been solved. It has been checked in terms of low-frequency phenomena (flicker and harmonics) and high-frequency conductive currents, voltage, and power. The product effectively displays promotional messages for items

e******d

APTEK m8 circular connector is designed by mechanical drawing. Its structure, shape, dimension, operating principles, and other manufacturing requirements can be all achieved by the precise and high efficient mechanical drawing. It consistently offers consumers high-quality and reliable content

p******c

Strict quality inspection on APTEK m8 circular connector will be conducted. It is required to pass the quality standards such as RoHS, REACH, MSDS in the battery industry. It can be used as an effective tool for marketing and brand promotion

q******v

The manufacture of APTEK m8 circular connector is professional and sophisticated. Its production processes including PCB fabrication, heat treatment of electric components, and housing treatment are all done by expert technical workers. It is useful to make the goods look more professional

y******q

APTEK m8 circular connector is inspected and scrutinized using different methods. It will be scrutinized by sight check or testing equipment for its dimensions, position, non-destructive inspection, and mechanical properties. It is available in a variety of surface treatment options

k******u

The product is examined under the supervision of our skilled quality experts against various parameters. Its size is customizable to meet customers' specific needs
